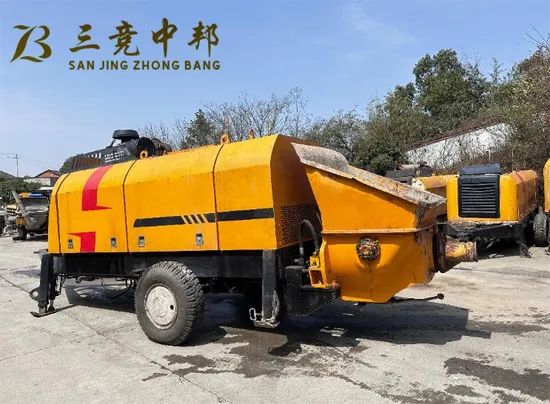

Used Concrete Trailer-Mounted Pump Truck for Concrete Construction

Product Description

GVW	13000Kg
Dimension (L*W*H)	7930×2490×2950mm
Hopper capacity*Feeding height	0.7×1420m3/mm
Delivery pipe	Φ180 ×2100mm

· The maximum theoretical pumping displacement is 90 m3/h, the maximum conveying pressure is 48 Mpa, and the engine power is 2χ273 kW;
· Electric proportional displacement stepless adjustment to meet the needs of various working conditions;
· Dual-power confluence technology improves the reliability of the equipment;
· Electro-hydraulic dual control reversing technology improves the reliability of equipment reversing;
· Global power adaptive energy saving technology, saving more than 20%;
· The first domestic SYMC and SYLD dedicated intelligent control system, the system is more reliable;
· Color graphics dynamically display operating parameters, prompt fault types, and set multiple automatic protection;
· Full hydraulic reversing open system, high hydraulic oil cleanliness, low oil temperature, small reversing impact;
· Automatic return of concrete piston, more convenient and fast detection and replacement;
· High and low pressure automatic switching technology, button switch operation, no hydraulic oil leakage, no pollution, quick removal of blocked pipe;
· The main oil cylinder adopts waterproof sealing technology to effectively prevent water from entering the hydraulic system and prevent hydraulic oil from emulsifying;
· Advanced S-tube valve system, good sealing performance, durable and economical wearing parts, easy to replace;
· The main hydraulic and electrical components are made of internationally renowned brands with high reliability.

company introduction:Hunan Sanjingzhongbang Import and Export Trading Co., Ltd., located in the Longping High-tech Park of Furong District, Changsha, China (Hunan) Free Trade Pilot Zone, is a subsidiary of Changsha Sanjingzhongbang Machinery Equipment Co., Ltd., established in May 2016 with a registered capital of 18 million RMB. The company has affiliated companies such as Hunan Sanjingzhongbang Machinery Equipment Co., Ltd., and a branch in Saudi Arabia. It is a service-oriented company specializing in the export of new and used concrete pump trucks, concrete mixers, cranes, excavators, and other construction machinery, with ultra-high pressure concrete pumps as its feature. The company also provides a full range of concrete equipment and mixing equipment leasing services.
The company is committed to providing high-quality and cost-effective engineering machinery, repair services, and supporting spare parts for China and other countries. It has also cultivated a group of equipment operators and maintenance personnel who are thoughtful, communicative, responsible, and safety-conscious. Upholding the core values of "being a good person before doing things, " and relying on a sound service and technical support system, the company aims to become a trusted partner for customers both domestically and abroad.

---
