Univeral Precision Vertical Horizontal Turret Milling Machine M4h

Product Description

Product Description

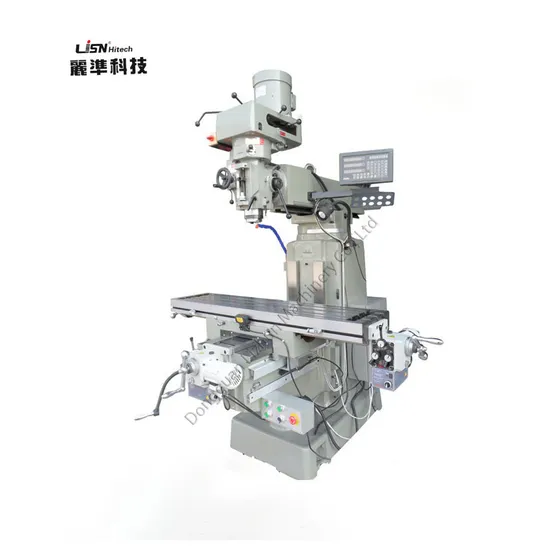

The VMC-M3 is a vertical turret machining center with excellent stability and rigidity. The castings of this CNC lathe are made of cast iron with excellent sensitivity, excellent stability and no deformation problem. The spindle of the machine is made of chromium combined with high quality steel, both cutting ability and precision of the machine are very excellent. The vertical milling head adopts unique inverted hanging design, wihch provides excellent precision to the processing. it is also very simple to operate and easy to brake.
The milling head adopts parts imported from Taiwan and assembled in China. The machine is compact structure and has high flexibility. The milling head can turn around 90°, 45° before and after rotation. It equippes with manual oil pump for centralized lubrication of work table and lifting table. It is suitable for hardware parts, machinery parts, mold and automation manipulator and other industrial applications.
Main Features
Excellent stability Excellent rigidity High flexibility Milling head can turn around 90°, 45° before and after rotation Equips manual oil pump Detailed Photos
Product Parameters

Parameters	Projects	Unit	M3	M4S	M4H	M5
	Table area	mm	254x1270 (10'' x 50'')	254 x1270 (10'' x 50'')	254x 1270 (10'' x 50'')	305x1370 (12'' x 54'')
Table Travel	X Axis	mm	800	800	800	900
	Y Axis	mm	400	400	400	400
	Z Axis	mm	480-500	480-500	480	470
Spindle	Spindle Taper	mm	R8/NT30	R8/NT30	R8/NT30	NT40
	Spindle Stroke	mm	127	127	127	127
	Spindle Speed	Steps	16 (Steps) / Variable
	Spindle Feed	mm	0.076 / 0.003'' 0.038 / 0.0015'' 0.203 / 0.008''
	Spindle Low Speed	r/min	66,110,175,270,550,930,1460,2270,variable
	Spindle High Speed	r/min	132,220,350,540,1100,1860,2920,4540/60,4200
T-slot	Slot x Width	mm	3x16	3 x16	3x16	3 x16
	T-slot spacing	mm	65	65	65	65
Motor	Voltage	v	220/380/415	220/380/415	220/380/415	220/380/415
	Maximum Workpiece Weight	kg	300	300	400	350
	Saddle Width/Length	mm	280 x 150	280 x150	280 x150	350x650
	Ram Stroke	mm	510	510	510	650
	Spindle Diameter	-	85.7	85.7	85.7	105
Distance from Spindle center to Machine Body	Max	mm	120	120	120	120
	Min	mm	700	700	680	810
Distance fron Spindle end to Table	Min	mm	55	100	100	100
	Max	mm	430	460	480	580
Dimension	-	mm	1680x1680x2090	1680x1680x2090	2000x1680x2150	1770x1780x2300
Net Weight		kg	1100	1300	1380	1500

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
