Safety Mat Foot Signal Switch Protection Control Pressure Sensitive Safety Carpet Sensor

US$200.00 1 Set (MOQ)

Basic Info.

Model NO.
AZ-3451225896
Raw Materials
Synthetic Rubber, Pad
Medium
Metal Frame Layer Rubber Sheet
Performance
Acid and Alkaline Resistant Rubber Slab
Color
Black Rubber Sheet
Colour
Yellow Black
Standard or Not
Standard Part
Customize or Not
Support Customization
Thickness
14mm
Transport Package
Cardboard Boxes and Woven Bags
Specification
Customize
Trademark
AIZHENG
Origin
China

Packaging & Delivery

Package Size
15.00cm * 12.00cm * 6.00cm
Package Gross Weight
3.000kg

Product Description

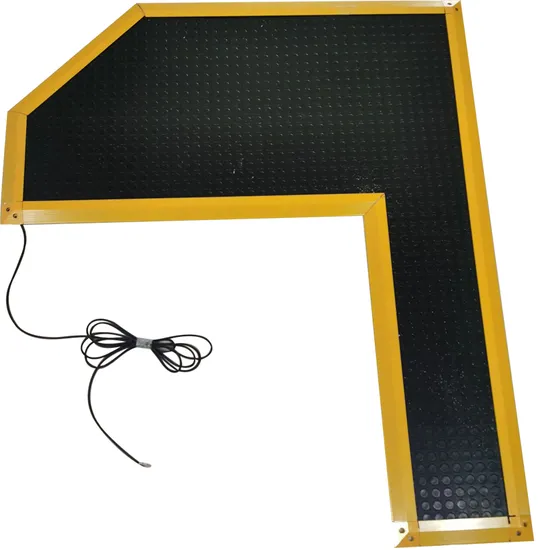

Safety carpet instructions
Safety carpet safety protection device
Impact resistant structure, non-slip surface,
Simple installation;
· With a variety of metric specifications, customize a variety of shapes (corner, corner, middle blank, etc.) safety
Carpet; · Maintenance free
· Excellent resistance to the corrosion of various acids, alkalis, salts and oil stains;
· The whole structure has excellent water resistance
Safety carpet, safety mat is a pressure sensitive safety protection device when a set minimum weight is applied
The switch will turn off when the safety pad is on, and the controller will then send a stop signal to the protected machine to stop its movement. Reliable protection of the operator from all kinds of potential hazards.
· Surface material: pvc
· Protection level: IP67
· Ambient temperature: +5ºC ~ +50ºC (safety carpet system)
-20ºC ~ +50ºC (Single safety carpet)
Storage temperature: -20ºC ~ +50ºC
· Thickness: 14mm
· Activation strength: 200N/ Φ80mm
· Response time: less than 30mS
· Allowable load: 2000N/cm2
· Connection mode: 2-core, 4-core cable, length of (2-6) m
· Response time: less than 30ms
· Carpet line: The carpet appears, can be selected on the long side or short side, or at the right Angle according to the requirements
· Carpet trimming: aluminum strips can be configured around the carpet to fix and route
· Special shape: Special size and shape can be customized according to customer requirements

Product name Safety Carpet Sensor Material rubber
Used protect Feature corrosion-resistant, wear-resistant
Application Automobile, industrial electrical equipment Color yellow and black
Product Paramenters
Our Advantage:
1.Competitive price.
2.Continuance service and support.
3.Diversified rich experienced skilled workers.
4.Custom R&D program coordination.
5.Application expertise.
6.Quality,reliability and long product life.
7.Mature,perfect and excellence,but simple design.
Certifications
inghe Hongli Rubber & Plastic Co., Ltd. is a modern and innovative technology enterprise specializing in the production of rubber products. The company is located in China's rubber product production base - Qinghe, Hebei, close to Beijing-Kowloon Railway and Qingyin Expressway, 120 kilometers away from Jinan Airport, with convenient transportation and beautiful environment.
Our company always adheres to the tenet of quality first. For this reason, the company has professional technical personnel and a perfect quality management system to ensure that the products meet the requirements of customers.
We firmly believe that to produce good products, we must have a good production environment. This is reflected in the production equipment used by the company, the high-quality raw materials and the workforce. In the factory area, the spirit of solidarity and cooperation can be seen everywhere, coupled with the computer monitoring production and delivery system, to ensure that the company becomes one of the fastest suppliers in the domestic industry. Our company's product development starts from the market demand and understanding and analysis of the problems existing in the use of customers. On this basis, our company is further finding solutions to solve problems for customers. To become a customer-qualified manufacturer of rubber products! In order to achieve this goal, the company strictly controls every aspect of product production. Now Manulife has expanded from the previous single rubber sealing products to four series of products - safety contact belt series, fire expansion sealing strip series, high conductive shielding rubber series, sealing rubber product series, and also includes special products made according to customer requirements. product. The launch of Manulife's new series-safety rubber switch fully reflects the company's technological innovation. Now the company's entire production operation program has made the products praised by customers in terms of quality, service level and innovative awareness.
Q: Are you factory or trading company?
A: We are the factory specialized in producing the seal strip&rubber product with the experiences for more than 5 years.
Q:What's your MOQ?
A: 100 meters,but small test order is also available.
Q:Please provide us with your best price?
A:Please advise how many do you want? I will quote to you once get your information.
Q:Would you send me a product sample before I place an order?
A:Yes, Free sample is available; sample time: 5-7 days.
Q:What's the shipping cost for a sample to our door?
A:Please advise your address and I will quote to you ASAP.
Q:Do you work with DHL, FedEx or UPS?
A: yes, all of them. TNT, also acceptable.
Q:What shipping method do you prefer?
A: For small order with light weight we prefer EXPRESS. For larger heavy goods, ship by sea or by air is the most economical way.But it depends on you.
Q:What format of the file do you need if I want my own design?
A: We have our own professional designers. So you can provide JPG, AI, CDR or PDF, etc. We will draw artwork for mold or printing screen for you.
