| Model | JL-700 | |||||
| Body Dimensions (mm) | Φ30*29.4 | |||||
| Protection Cap Dimensions (mm) | Φ45.2*10.8 | |||||
| Gasket Dimensions (mm) | 36.8*2.5 | |||||
| Lock Nut Material | Zinc alloy | |||||
| Gasket Material | PBT+phenolic | |||||
| Body Protection | PBT | |||||
| IP Rating | a base with dome to reach IP66 | |||||
| IK09 Capable Test | Pass | |||||
| Can Add configure Connector | Dali 2.0 / 0-10 dimming | |||||
| Application | 1.Outdoor Luminaires - Wall Packs - Parking Lots - Walkway. 2.Street and Area Lighting cell control | |||||

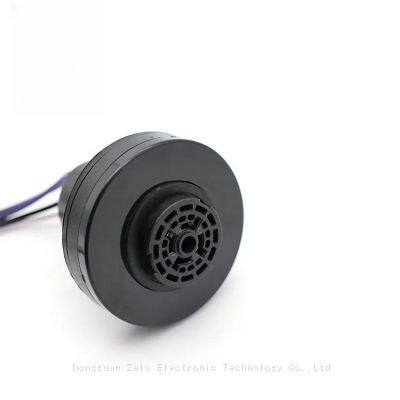

| Model | JL-710 |
| Zhaga Input Parameter | |
| Rated voltage range | 100-277VAC |
| Rated Voltage Range(Max) | 85-305VAC |
| Maximum steady-state input AC current | 30mA (under 220VAC) |
| I2t | 0.009A2s (under 220VAC) |
| Conversion efficiency | 80%(under 220VAC) |
| Zhaga Output Parameter | |
| Output voltage | 24V DC |
| Stable voltage adjust precision | +/-2% |
| Rated current | 0.21A |
| Rated power | 5W |
| Noise | 150 mVp-p |
| Ripple | 100 mVp-p |
| Linear adjustment rate | +/-0.12% |
| Load adjustment rate | +/-5% |
| Po | <0.12W |
| Features: • Comply with ZHAGA BOOK18 standard • IP66 (cooperate with our ZHAGA light controller) • Support top surface installation/side installation/upside-down installation • Small size, suitable for installation on all kinds of lamps • The cost is much lower than choosing a dimming driver solution with secondary voltage output • AC wide voltage input (85~305VAC) • No-load power consumption ≤0.12W • Comprehensive protection: overvoltage protection/undervoltage protection/overcurrent protection/short circuit protection/ Open circuit protection/over temperature protection • 0~10V dimming signal switch output • CLASS II power supply • Passed RoHs and UL certification |
| • The default line length is 152.4mm, and the length can be customized • The stripping length is 10mm by default, the insulation layer is reserved, and the length can be customized • AC wire gauge (black wire, white wire): 18AWG /AWM1015, 2.9mm outside diameter including insulation • Signal wire gauge (purple wire, gray wire): 20AWG/AWM1015, 2.6mm outside diameter including insulation |
| The size of the opening is exactly the same as the standard NEMA socket, and the lamp with the opening of the NEMA socket can also be installed directly JL-710 socket. |
| Note: Compared with the NEMA standard light controller, the ZHAGA light controller has a flexible installation position and a smaller volume, which makes the lamp more beautiful. The installation position also reflects the different functions of the ZHAGA light controller. (Light control, microwave, infrared) |
| Note:In this project case, the combination of zhaga socket and protect cover/ shorting cap can be equivalent to the pre-installation project of NEMA standard smart street light. Retrofit and upgrade traditional street lights.Compared with the street lamp project of the NEMA socket, the zhaga socket has a more beautiful design and saves costs. |

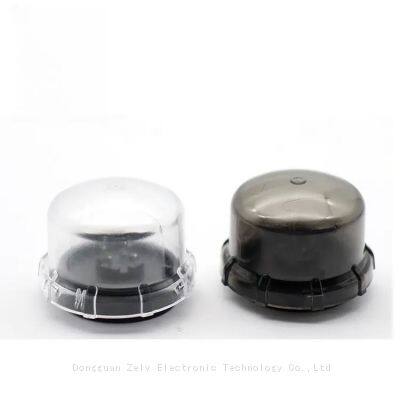

| Note: We provide different sizes of zhaga light control covers and bases for you to design your own controller. |
| Note: This zhaga light control has the same function as the traditional nema street light controller. It controls the switch of the street light through the brightness of the ambient light and reduces the cost. |
| Note: This zhaga product design is mainly applied to the principle of infrared micro- wave induction. Through infrared induction of moving objects (cars or people in mo- tion), street light switches are controlled, which not only satisfies lighting needs but also saves electricity costs. |
| Note: This series of light controller products are based on the ZHAGA BOOK18 inter-face standard development of smart Hui type rotary lock light controller, adopts light sensor + microwave mobile combined sensor, can output DALI Dimming signal. The light controller is suitable for roads, lawns, courtyards, parks, parking lots, industrial Lighting scenes such as mines. |
| Note: In this project case combination, choose the zhaga socket to match the zhaga series finished light control. According to the needs of the actual project, choose the nature of the controller (light control, smart or infrared control) to choose the right product. Compared with light control and intelligent control, infrared control is generally suitable for indoors, such as large factories and underground garages. Or it can be combined with intelligent light control to realize the intelligentization of urban lighting. |
