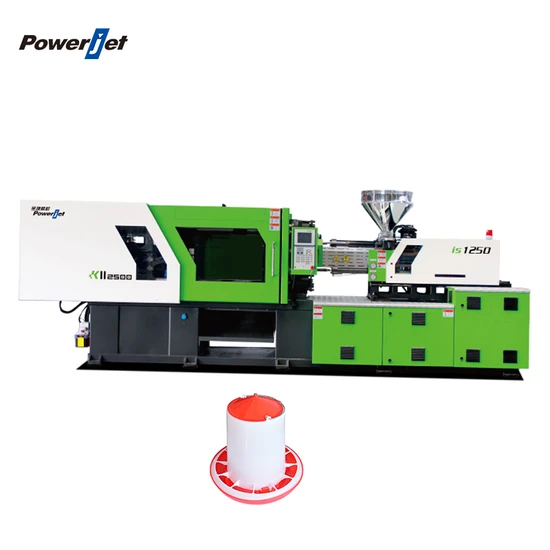

Powerjet Plastic Chicken Feeder Injection Molding Machine Clamping Unit Mould and Assembly

US$42,600.00 1 sets (MOQ)

Basic Info.

Model NO.
KII250-S7
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Automation
Automatic
Certification
CE, ISO9001:2008
Warranty of Core Components
1 Year
Key Selling Points
High Precision, High Productivity
Machinery Test Report
Provided
Condition
New
Machine Type
Hydraulic
Motor
Servo Energy Saving Motor or Variable Pump
Showroom Location
Egypt, Turkey, United Kingdom, United States, Fran
Video Outgoing-Inspection
Provided
Product Name
High Precision Injection Molding Machine
Application
Bottle Cap,Home Products Car Bumper, Ect.
Plastic Processed
PP, PC, ABS, Pet, PVC,HDPE, ABS/PP, PE/PP
Transport Package
1. Machine Cleaning 2. Protective Film Wrapping
Specification
CE standard
Trademark
Powerjet
Origin
Guangdong, China
HS Code
8477101090
Production Capacity
5000sets/Year

Product Description

Product Description
Product Parameters
DESCRIPTION
UNIT
KII250-V7/S7
Clamping Unit Clamping force
kN
2500
Opening stroke
mm
540
Max daylight
mm
1120
Platen size
mm
871x871
Space between bars
mm
580x580
Max mold height
mm
580
Min mold height
mm
220
Ejector stroke
mm
150
Ejector force
kN
77
Ejector number
pcs
1+4
Injection Unit Screw diameter
mm
52/55/60
Scew L/D ratio
L/D
21/21/19
Injection pressure
MPa
209/187/157
Shot volume
cm3
595/665/792
Shot weight (PS)
g
540/604/719
Iniecton rate
g/s
216/241/287
Plasticizing capacity
g/s
30/38/45
Screw stroke
mm
280
Screw speed
rpm
189
Carriage stroke
mm
386
Power Unit Hydraulic system pressure
MPa
17.5
Pump motor power
KW
22/40.1
Heater power
KW
16.02
Number of temp control zones
PCS
1+4
General Oil tank capacily
L
320
Machine weight
T
7.6
Machine dimensions
m
5.8x1.7x1.9

Company Profile

Customer Photos
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
