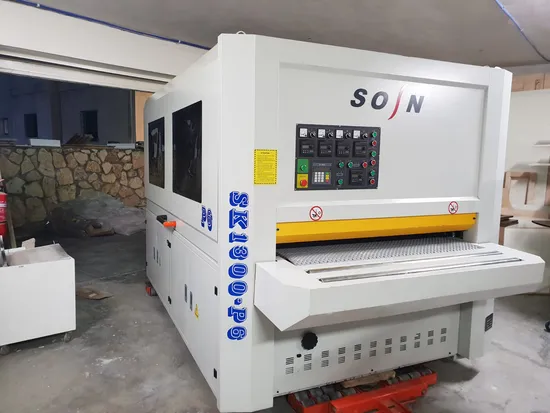

Woodworking Polishing Machine Brush Sanding Machine

Product Description

Woodworking Brush polishing Machine for curved surface polish
---Ideal for white wood, sealer, primer, MDF, and composite sanding applications for both flat and irregular surfaces.

1.Function and Characteristics:
1). The machine suits for sanding of kitchen Cabinet, Window, Door, Furniture…. etc.
2).The modular structure can be combined optionall to satify clients' demands.
3). Frequency conversion speed control is used in each group
4).Each group can adjust the height of the light, and the height of the worktable can be adjusted.
5).Each unit can be drawn out for sand sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.

2.Parameter

working width	1300mm
Min.working length	500mm
working thickness	2-160mm
polishing roller speed	frequency control
feeding speed	5-20m/min
total motor power	13.67kw
Disc motor power	1.5KW
Horizontal polishing power	1.5KW *2
Vertical polishing power	2.2KW *2
Lifting motor power	0.37KW*4
Feeding motor power	0.55KW
Swing motor power	0.25KW *2
overall dimensions	3650x1750x21000mm
net weight	4200kg

3. Structure
package :

4. Samples


5.Machine in factory

6. Delivery and loading
7. SOSN Factory and Team
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film,
4. Delivery time:20 days after getting the deposit (depends on the quantity)
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs 2: quick delivery--timely and effective 3: excellent after-sale services--no worries anymore 4: friend partner relationship--a win-win cooperation
If any question,feel free to contact me.
we are ready to serve you any time.
