Electronic Let-off Water Jet Loom with Cam Shedding for Polyester Yarn Fabric

Product Description

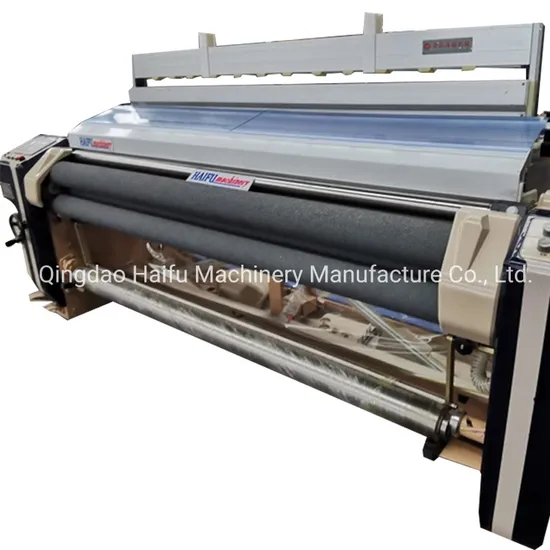

Water jet loom HF851 with cam shedding
features an innovated machine structure and moving parts, as well as highly integrated mechanical components and an electronic control system. rotation speed is higher at speeds of up to 900RPM. The water jet weaving machine provides higher versatility and operation functionality for manufacturing light and medium-weight fabrics.
Features The beating mechanism has been improved to provide a greater machine vibration and noise level reduction, while significantly increasing machine stability and durability. Separating the nozzle holder allows users to individually set the position and direction of each nozzle. The water jet loom is equipped with a large-capacity electromagnetic brake and super-fast start-up motor (i.e. the motor can start up immediately to a normal speed). A new energy-efficient nozzle reduces water consumption by up to 15%.

Working range	Polyster yam
Reed width	Nominal 150 170 190 210 230 260 280 300 340 360 400cm Useful reeding width: reduce 0-60 cm
Filling selection	1 color 2 color at will
Weft density range	6-60pick/cm
Motor	3.5kw, 4.6kw selected according to the certain model
Shedding	Plain type 2-8pcs heald frame Positive cam machine, 4-10pcs heald frame Dobby(mechanical), upper negative dobby or electronic dobby, 2-16 heald frame (according to customer' s demands)
Let-off	Electronic let off-ELO Mechanical let-off Flange diameter: 800mm
Take-up	Mechanical take-up Electronic take-up Upper and down temple(according to the varity of fabric)
Waste filling removel	Mechanical take-up 3 roller
Cutter	Mechanical cutter
Operation	START - DRIVEN BY RUSH START MOTOR. STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION ARRANGE, RUN, FORWARD INCHING, REVERSE INCHING, PROGRAMMED POSITION STOP AFTER ONE CYCLE REVERSE ROTATION
Beating	CRANK BEATING, SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM
Filling insertion	SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM) DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM FEELER - IR FEELER OR OPF FEELER, USING OPTICAL CABLE
Yarn package stand	Floor mounted horizontal stand for-4package
Catch cord	Spindle twisting system
Temple	Top mounted, 2 barrel type with 2ring each

Detailed Photos
All bearing are imported from GemmerFAG, Japan NSK
Imported Nozzel, water pump, spring one-way valve enhances the bunding of water spray
HF Loom Lord wallboard adopts high grades cast iron, Seamless steel pipe Kingpiece-solid frame, vibration noise reduction
The machine is stably, the efficiency high, the service life long spraying of water loom
Company Profile
Qingdao Haifu Machinery Manufacture Co., Ltd. is specializing in manufacturing and supplying water-jet loom.In the past 15 years, Haifu machinery has supplied world wide approximately 89000 sets of water jet loom machine,and it was among the first facotry in China making water jet loom, the company now has two facotries, one in Qingdao, the other one in Siyang, jiangsu province, haifu machinery is making sure all the machine given to the customer are at the same quaity, same best quality, we are not only focus on the price, but we are also focus on our brand name, we believe that with our quality always insured, customer will sees it and come back to us with more customers.Our machine now is running in Uzibekistan, Mexico, India, Turkmenistan, Pakistan. Every one of our customer was atractted by the way we make machines and decided to buy, and of course, satisfied with our machine and try to buy more.
Factory workshop
Certifications

Packaging & Shipping
FAQ
Q: Are you a manufacturer or Tradle Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer reasonable price.
Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative
information to Dromote a face-to-face meeting if your'd like to.
Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement

---
