Hutou Shearing Machine Manufacturer of Large Metal Shearing Machine

Product Description

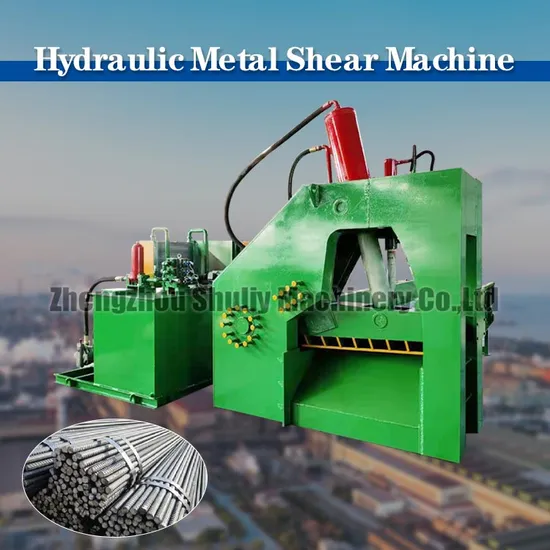

Heavy Duty Tiger Head Hydraulic Shear Machine
contact Tina for details
Scope of application:
1. This equipment is mainly used in the recycling and processing industry of waste materials. Small and medium-sized steel mills can cut various cross-section shapes such as round steel, square steel, channel steel, angle steel, I-beam, steel plate, steel pipe and other scrap metals in cold state.
2. This equipment adopts hydraulic transmission. Compared with the mechanical transmission shearing machine, it has the advantages of small size, light weight, low inertia, low noise, smooth movement, safe operation and use, and easy to realize overload protection.
3. This equipment has manual and automatic functions. The operation control is convenient and simple, and the scissors can be cut and stopped at any position during the working process. And according to the size of the material to be cut, the size of the cutting opening can be arbitrarily controlled to obtain the best working efficiency.
4. The equipment has reasonable technical parameters, wide application range and low energy consumption. It is widely used in scrap metal recycling and processing industry, metal shearing in small and medium-sized steel plants, and provides charge for returning to furnace smelting.
Technical parameter of machine

Model	100 tons	200 tons	280 tons	315 tons	400 tons
Shear force	100 tons	200 tons	280 tons	315 tons	400 tons
Dimension	2.5*1.2*2.7m	2.8*1.2*2.7m	3*1.4*2.7m	3.4*1.6*2.7m	3.8*1.8*2.7m
Motor power	15KW,380V	22kw, .380v	30kw, 380v	37kw,380v	45kw,380v
Cutting length	1m	1.2m	1.2m	1.2m	1.4m
Shear thickness	10mm	35mm	45mm	80mm	65mm
Blade material	55CrSi	H13	H13	H13	H13
Cylinder material	Chrome plated cylinder	Chrome plated cylinder	Chrome plated cylinder	Chrome plated cylinder	Chrome plated cylinder
Pump	Piston Pump	Piston Pump	Piston Pump	Piston Pump	Piston Pump
Feeding conveyor length	discuss	discuss	discuss	5.5m	5.5m
Control method	Fully automatic / semi-automatic / pedal

Detailed Photos

Packaging & Shipping

---
