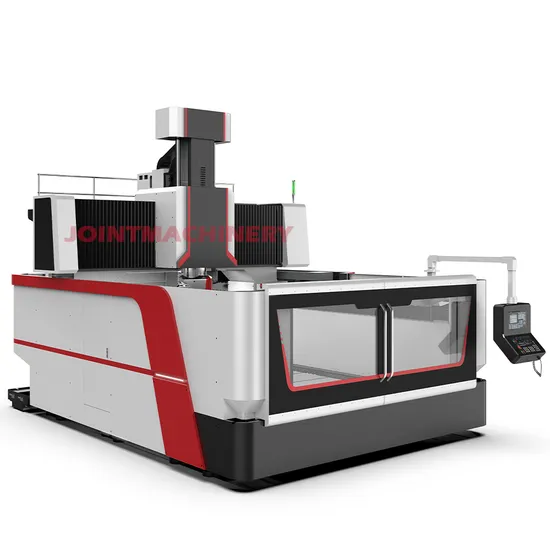

5 Axis Double Coulmn Gantry CNC Machine Gantry Type CNC Milling Machine

Product Description

5-Aixs CNC Gantry Type Machining Center
In addition to all the adventages of bridge gantry milling machines compared to traditional gantry milling machines, bridge gantry five-axis machine tools also have:
√ It is equipped HSD precision five-axis head imported from Italy and Siemens 840D high-end system, which can realize five-axis and five-linkage precision machining.
√ The three linear axes can be effectively controlled and can respnd to the speed and acceleration of the A/C rotary axis, so that good spatial machining accuracy can be obtained.
√ At present, the large-scale high-speed milling and double-swing-head five-axis linkage gantry popular in the international market basically adopt the bridge-type gantry structure.
Except fr the clamping surface, it can realize any angle machining.
This series 5-axis machines are suitable for manufacture and processing of various complex and high-gloss parts.

5 Axis Double Coulmn Gantry CNC Machine Gantry Type CNC Milling Machine

Model	Unit	DFW 3030
Worktable size	mm	3500*3000
X-axis travel (vertical)	mm	3000
Y-axis travel (vertical)	mm	3000
Z-axis travel	mm	1000
Distance between the two columns	mm	3650
Max cutting load of worktable	T/m2	10
Spindle taper		HSK-A63
Spindle speed	rpm	18000
Spindle power	kw	55
Spindle torque	N.m	87.5
C-axis
Max torque	N.m	1250
Max speed	rpm	30
Holding torque	N.m	4000
Rotation range	°	±270
Encoder		Absolute
Positioning accuracy	mm	±8'' (VDI 3441)
Repeat positioning accuracy	mm	±6'' (VDI 3441)
A-axis
Max torque	N.m	707
Max speed	rpm	30
Rotation range	°	±110
Encoder		Absolute
Positioning accuracy	mm	±8'' (VDI 3441)
Repeat positioning accuracy	mm	±6'' (VDI 3441)
Fast moving speed	mm/min	24000

CNC system: Fanuc, Mitsubishi, Siemens, etc.	Tool magazine	Chip conveyor

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
