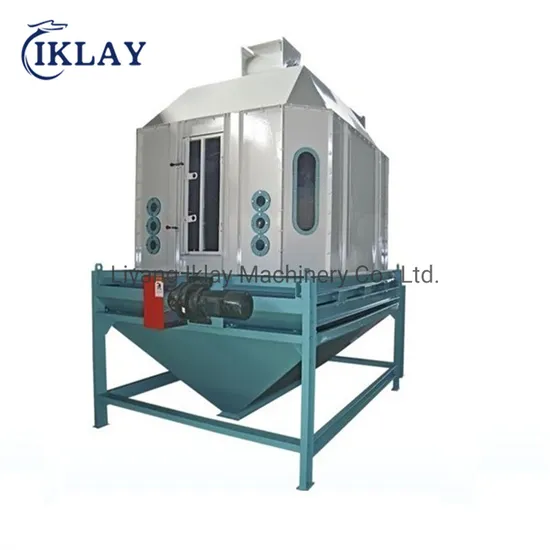

Animal Feed Pellet Cooling Machine/Poultry Feed Cooling Machine/Chicken Feed Pellet Cooler

US$3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SKLN1 SKLN1.5 SKLN2.5 SKLN4 SKLN6 SKLN8 SKLN10
Processing Object
Animal Feeds& Wood Pellets
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
2 Years
Application
Wood Fellets/Feeds Fodder Cooling
Cooling Time
10-15minutes
Capacity
1-30th
Transport Package
Wooden Case or Iron Frame
Trademark
IKLAY
Origin
China
HS Code
84388
Production Capacity
3000PC/ Year

Product Description


TECHNICAL PARAMETER
Model Output Cooling volume(m³) Cooling time(min) After cooling the material temperature Power(kw)
(T/H)
SKLN1 1.5 1 Not less than 6-10 min Not higher than room temperature 3-5ºC 1.1
SKLN1.5 3 1.5 1.1
SKLN2.5 5 2.5 1.5
SKLN4 10 4 2.2
SKLN6 15 6 3
SKLN8 20 8 3
SKLN10 25 10 4
SKLN12 30 12 5.5

FEATURE 1.This cooler adopts the counter flow cooling principle to cool down feeds pellets with high temperature and high moisture content, this cooling method can avoid the sudden cooling because of the direct contact between the cold air and materials, which will prevent the surface cracking of feed pellets.

2.The latest design of octagonal cooling chamber has no dead angle. The reciprocating slide valve discharging mechanism is stable and reliable in working and guarantee less residue.

3.Feeding via airlock has large wind area and remarkable cooling effect.

4.The temperature of cooled products is not higher than the room temperature 3-5ºC.

5.Low energy consumption and easy operation.
