High Quality Factory Price Turret Vertical Milling Machine

Product Description

High quality factory price Turret Vertical Milling Machine

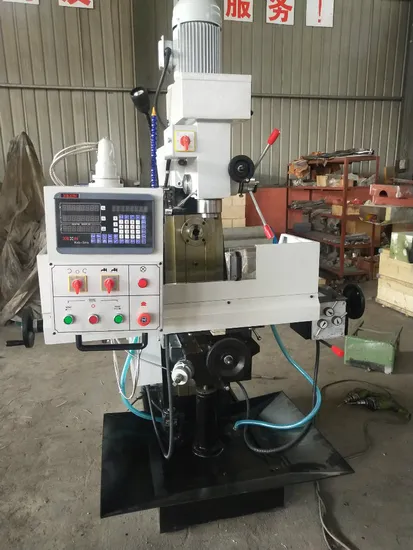

Product picture:
The main performance characteristics:
Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Product main technical specifications:

Model	3H
Table dimensions	254×1270mm
Table load	300kgs
X/Y/Z travel	890/384/407mm
Spindle vertical stroke	127mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	R8,NT30
Spindle motor	3HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	0-458mm
Head rotation Angle	45°(F/B,L/R)
Stretched out arm stroke	458mm
Spindle rotating speed	80-5440,16Steps
Machine net weight	1250kgs

Model	4S
Table dimensions	254×1270mm
Table load	300kgs
X/Y/Z travel	890/385/407mm
Spindle vertical stroke	127mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	R8,NT30
Spindle motor	3HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	0-458mm
Head rotation Angle	45°(F/B,L/R)
Stretched out arm stroke	458mm
Spindle rotating speed	80-5440,16Steps
Machine net weight	1250kgs

Model	5H
Table dimensions	254×1270mm
Table load	340kgs
X/Y/Z travel	890/407/407mm
Spindle vertical stroke	127mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	I.S.O 40
Spindle motor	5HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	0-458mm
Head rotation Angle	45°(F/B,L/R)
Stretched out arm stroke	458mm
Spindle rotating speed	60-3600,10Steps
Machine net weight	1450kgs

Model	6H
Table dimensions	305×1370mm
Table load	340kgs
X/Y/Z travel	780/400/450mm
Spindle vertical stroke	125mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	I.S.O 40
Spindle motor	5HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	10-540mm
Head rotation Angle	45°(L/R)
Stretched out arm stroke	500mm
Spindle rotating speed	60-3600,10Steps
Machine net weight	1800kgs

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Details pictures :
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
Agents Wanted:
We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
If any questions pls feel free to contact me
