500L Vacuum Toothpaste Mixer

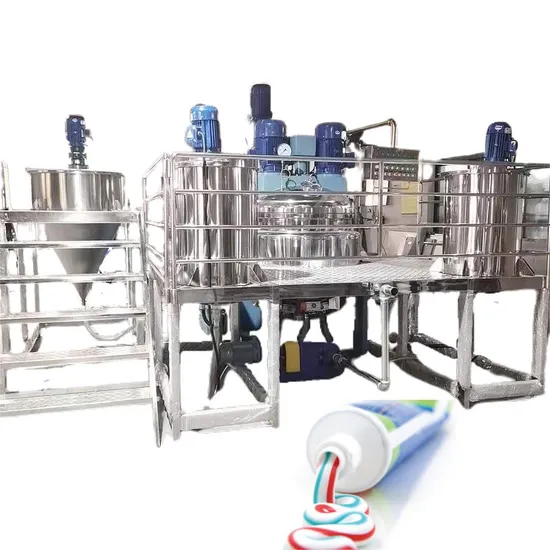

The vacuum machine produced by our company is widely used for manufacturing paste-like products of toothpaste, cosmetics, foods and chemistry industry, etc. This equipment includes paste machine, pre-mix boiler, glue-water boiler, powder material hopper, colloid pump and operation platform. Product Parameters
| Product | Material, Specification | Origin | Remark |
| Vacuum Paste Making Machine | Working volume 500L | us | |
| 1. Inner pot | SUS304, plate thickness 8mm | us | Vacuum degree-0.096Mpa, polished |
| 2. High speed stirrer I | SUS304, 1000r/min | us | Dissolving plate diameterφ250mm and Φ110mm (one upper and lower) |
| 3. Motor power | 7.5KW | suzhou | High-speed dispersion mixing |
| 4. High Speed Stirrer II | SUS304, 1000r/min | us | Dissolving plate diameterφ250mm and Φ110mm (one upper and lower) |
| 5. Motor power | 7.5 KW | suzhou | High-speed dispersion mixing |
| 6. Scraping and mixing | SUS304, 38r/min | us | Anchor wall scraping |
| 7. Gear motor power | 5.5KW | Changzhou | |
| 8. Jacket | SUS304, plate thickness 5mm | us | Atmospheric pressure |
| 9. Shell | SUS304, plate thickness 4mm | us | Suspension support |
| 10. Cover | SUS304, plate thickness 8mm | us | hydraulic lifting, polishing |
| 11. Electric control cabinet | | us | Shell stainless steel sheet |
| 12. Hydraulic station | 1.5KW 1400r/min | | Used for hydraulic cylinder lifting, opening and closing container cover |
| 13. Rack | Skeleton material A3 square tube, aluminum alloy pressed pattern plate | us | |
| 14. Vacuum pump | 5.5KW, water supply 15L/min | Nantong | Vacuum degree -0.0973MPa |
| | | | |
| Powder silo | Working volume 400L | | |
| 1. Silo | SUS304, plate thickness 1.5mm | us | cone structure |
| 2. Stir | SUS304, 22r/min | us | |
| 3. Stirring motor | 2.2KW | Changzhou | |
| 4. Rack | SUS304, | us | |
| | | | |
| Premix pot 1 | Working volume 250L | us | |
| 1. Pot body | SUS304, plate thickness 3mm | us | Atmospheric pressure, flat top cover |
| 2. Stir | SUS304, 910r/min | us | Top-mounted single-layer three-leaf pulp |
| 3. Stirring motor | 1.5KW | suzhou | |
| 4. Feet | SUS304, suspension support | us | |
| | | | |
| Sweet Pot 2 | Working volume 250L | us | |
| 1. Pot body | SUS304, plate thickness 3mm | us | Atmospheric pressure, flat top cover |
| 2. Stir | SUS304, 910r/min | us | Top-mounted single-layer three-leaf pulp |
| 3. Stirring motor | 1.5KW | suzhou | |
| | | | |
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality.
Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
And more? Please feel free to contact us.
