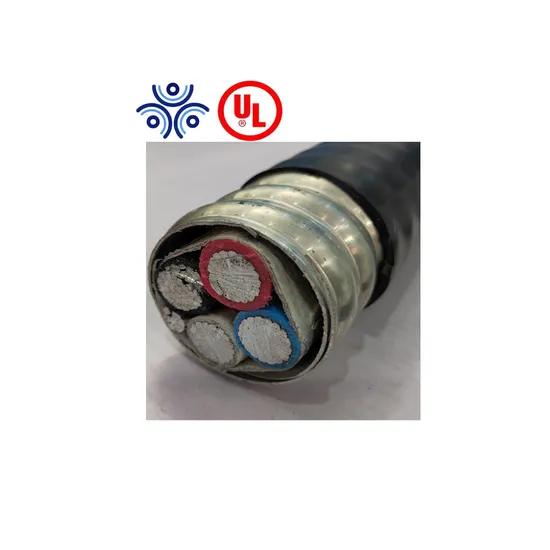

Acwu90 Aluminum Conductor 3 Conductor 750 Kcmil XLPE/Aluminum Armoured/PVC 600V

Product Description

cUL certificate 600V 4C 250MCM 500MCM ACWU90 Cable Factory Price for Sale Application:
For open and concealed wiring in dry locations only.For use in cabletroughs and ventilated flexible cable ways in dry locations only. Minimum recommended installation temperature minus 40°C (with suitable handling procedures).Maximum conductor temperature 90°C. Approved for use with ceiling fixtures.Armoured cable for commercial, industrial and apartment use
Structure: Conductor: Copper conductor with Copper grounding wire 14AWG to 2AWG or aluminium alloy 8000series ACM with AL grounding wire 6AWG to 750MCM Insulation: cross-linked polyethylene insulation (RW90 XLPE Assemble wrap: Conductor assembly paper wrapped Armored : bare interlocked aluminum armor. 5. Sheath: PVC Sheath 6. Number of conductor: Two, three or four core round laid
Standard: National : CSA C22.2 N° 2556; CSA C22.2 N° 51
UL File No.: E466697
Voltage:600V
Working temperature:
in dry locations only at temperature not to exceed 90°C.
Performance:
FT4 Flame retardant; Lead free and ROHS compliant. Limited Smoke Zero Halogen
Printing:
HT CABLES c(UL) E466697 250AWG 3C ACWU90 Armored CABLE FT4 600V (-40ºC) xxx m 2023
AL Conductor with bare AL aluminum tape interlocked armoured size series in 3 and 4 core

No of phase	Size	Insulation thickness	Bonding wire Size	PVC Jacket	Approximate Total Diameter	Approximate Net Cable Weight
	Awg or kcmil	MM	Awg	mm	MM	kg/km
3	6	1.14	8	1.27	21.6	807.41
3	4	1.14	6	1.27	24.2	980.79
3	3	1.14	6	1.27	25.4	1071.4
3	2	1.14	6	1.27	27	1188.4
3	1	1.4	4	1.27	29.9	1411.6
3	1/0	1.4	4	1.27	31.8	1575.2
3	2/0	1.4	4	1.27	34	1772.8
3	3/0	1.4	4	1.27	36.6	2015.2
3	4/0	1.4	4	1.27	39.5	2304.1
3	250	1.65	2	1.52	43.5	2668.4
3	300	1.65	2	1.52	46.2	2980.2
3	350	1.65	2	1.52	48.8	3281
3	400	1.65	2	1.52	51.1	3584.2
3	500	1.65	1	1.52	58.7	4712.7
3	600	2.03	1	1.9	65.4	5478.4
3	750	2.03	1	1.9	67.2	6245.3
4	6	1.14	8	1.27	23.7	931.88
4	4	1.14	6	1.27	26.6	1141.9
4	3	1.14	6	1.27	28	1256.4
4	2	1.14	6	1.27	29.8	1401.9
4	1	1.4	4	1.27	33.2	1674.9
4	1/0	1.4	4	1.27	35.3	1881.3
4	2/0	1.4	4	1.27	37.7	2126.3
4	3/0	1.4	4	1.27	40.1	2416.1
4	4/0	1.4	4	1.27	43.8	2781.4
4	250	1.65	2	1.52	51.2	3708.4
4	300	1.65	2	1.52	54.3	4128.9
4	350	1.65	2	1.52	57.1	4534.4
4	400	1.65	2	1.52	59.7	4942.6
4	500	1.65	1	1.9	65.2	5733.4
4	600	2.03	1	1.9	71.8	6704
4	750	2.03	1	1.9	77.6	7847.1

---
