Rod Mill Sand Making Machine

Product Description

Product Description

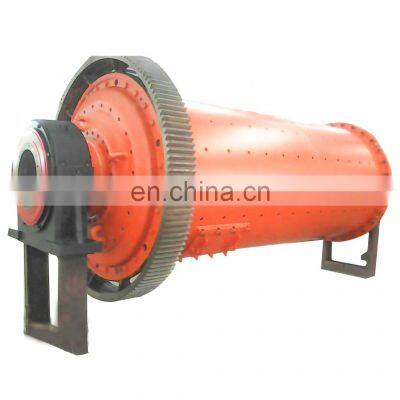

Rod Mill Sand Making Machine
Rod mill sand making machine is a kind of reliable crushing machines widely used for making sand for building.
Our rod mill sand making machine can be used to process or crush feldspar, quartz and ore.
It can also suitable for fine and medium crushing of hard and brittle materials, such as abrasive material, fireproofing material, concrete, steel shot, copper ore, iron ore, gold ore, concrete aggregate, asphalt aggregate, etc.
In addition, our sand making machine is especially suitable for crushing river gravel to make sand. It's a kind of effective and energy saving sand making machine which can save more energy (50%) than traditional sand making machines.
Working Principle:
The barrel of rod mill sand making machine rotates at a certain speed. Under the influence of friction force and centrifugal force, grinding medium rises to a certain height and is thrown down. During the process, materials are impacted and grinded.
Functions:
1. Rod mill sand making machine is widely used in mining, water conservancy project and building materials processing.
2. The gearing down of reducer and gearwheel (driven by motor) or the gearing down of gearwheel (driven by low speed synchronous motor) drive the barrel of rod mill sand making machine to rotate.
under the driven force produced by motor or low speed synchronous motor's reduction drive.
3. Under the influence of friction force and centrifugal force, grinding medium (steel bar) inside the barrel rises to a certain height and is thrown down.
4. Materials enter into the barrel continuously and are crushed by the movable grinding media. They are discharged under the force of overflow and continuous feeding.
Technical Parameters:

Model	Barrel specification (mm)		Rotating Speed of Barrel (r/min)	Rod weight (t)	Feeding size (mm)	Discharging size (mm)	Productivity (t/h)	Motor power (kw)	Size Length× Width× Height (mm)	Weight (kg)
	Diameter	Length
MB0918	900	1800	29.0-31.3	2.3	<25	0.16-5	1.6-6	22	5900×2365×2015	4200
MB0924	900	2400	29.0-35.4	3.1	<25	0.16-5	2.9-10	30	5250×2480×2127	5300
MB1224	1200	2400	27.0-34.0	6.5	<25	0.16-5	5.0-13	37	5829×2867×2540	11800
MB1530	1500	3000	26.5-29.5	11.5	<25	0.16-5	6.0-25	90	7635×3329×2749	18170
MB1830	1800	3000	21.6-22.8	17.5	<25	0.16-5	4.8-28	155	8007×3873×3023	35000
MB2130	2100	3000	19.0-21.0	23.5	<25	0.16-5	12.6-30	210	9000×2800×3800	43000
MB2136	2100	3600	19.0-21.0	23.2	<25	0.16-5	15.1-45	245	9600×2800×3800	48000
MB2736	2700	3600	17.2-18.5	47.0	<25	0.16-5	25.0-75	400	10870×6100×4950	71500
MB2740	2700	4000	17.2-18.5	51.0	<25	0.16-5	27.7-90	430	11500×6100×4950	73600

---
