Paper Cone Cup Machine (ZBR)

Product Description

High-Capacity Paper Cone Cup Machine for Sales Zb1-a Product Description Machine Introduction:

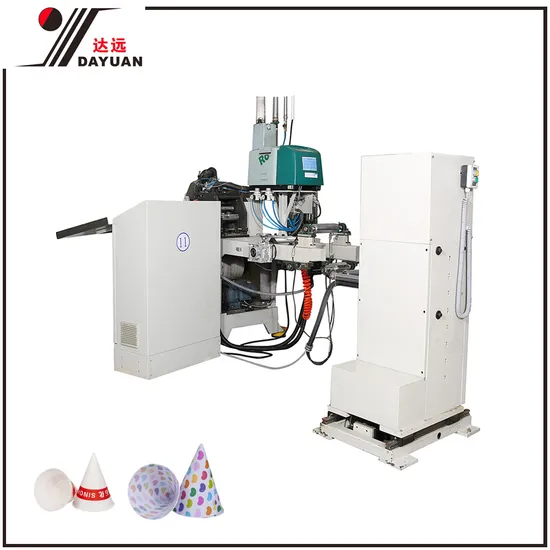

The paper cone cup machine (Straight Brim) can be used for the production of snack and drinking cones of coated, non-coated or dry-waxed paper.It offers the highest production speed of up to 200 pieces per min. The machine covers an area of 4M × 1.65 M and weighs approximately 2 tons.
Dayuan is an experienced manufacturer of paper cone cup machine based in China. Located in Zhongshan City we are provided with convenient transportation which can help you reduce the international transportation costs. If you would like to know more about any of our products, please turn to the corresponding pages of ice cream paper cone machine, automatic paper punching machine, carton erecting machine, aluminum foil paper, etc. We welcome you to contact us and we look forward to working with you.
Function And Features:
1.This equipment can be equipped with 1-4 color printing designs (nice color designs)
2.This equipment can produce different size of cup coater.
3.The production process for whole machine is machinery, photoelectricity and pneumatic system
4.The machine can have multi types (round ,square etc) by changing the moulds.
5.It can deal with the waste in the recyling box.
6.It's easy to controll and operate the machine.
7.The machine can process multi layers for the paper cup coater.
Specification Paper Cone Cup Machine Specification

Machine type	ZB1-A
Specification	1.5-14oz
Voltage	380V/50HZ
Covering Area	4.0M*1.65M
The Total Power	9KW
Height	70-145mm
Maximum Production Speed	200 pcs/min
Air Pressure	0.6Mpa (Dry and clean compressed air)
Print Logo	Yes
Wall angle	40°
Maximum web width	180mm
Max.reel diameter	1200mm
Advantage	Available to make any special size paper cup machine and cup mould
Materials	Coated Paper 90-120gsm, White Kraft Paper and Wax Paper 90-150gsm.

Detailed Photos
Paper Cone Cup Sample ( Free provide if needs)
Company Profile Packaging And Shipping

Packaging	The normal package is wooden Case(Size: L*W*H). We will pack it according to customer's special request.If export to Europe countries, the wooden box will be fumigated.
Packaging Dimension		Case 1	Case 2
	Szie	2250mm* 1760mm* 1960mm	1250mm* 1200mm*900mm
	Net Weight	900 KG	250 KG
	Gross Weight	950 KG	300 KG
Shipping	By Sea,or as arranged

Dayuan Industrial Co. Ltd
Our company is a major manufacturer and supplier of paper cone cup machine based in China. To ensure the quality of products, our company has uses advanced production technologies and has hired professional engineers and technicians. Our carton erecting machine, automatic paper punching machine, ice cream paper cone machine, etc.
Have gained widespread recognition and have earned CE certificate. Our market continues to expand with our products exported to over 70 countries such as Malaysia, Korea, Spain, Thailand, Pakistan, Chile, Turkey, Greece, Russia, and Bulgaria. If you are interested in any of our products, please do not hesitate to contact us. We at Dayuan look forward to working with you.
FAQ Q1. Are you trading company or manufacturer?
A:We are manufacturer,with more than 20'years exploration and development.
Q2. Do you have quality certificate?
A:We have got the SGS and CE certificate for our machine.
Q3. What's the delivery time and transportation ?
A: Usually is 45 days.And in order to save your cost, we will shipment the machine by sea, it is about 25-40 days.It also denpends on which coutry and port you are. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
Q4. How can I get the samples?
A: We can free provide some paper cup sample for quality check.And you only need to pay for express cost.
Q5.When can I get the price?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q6. What terms of payment you usually use?
A: By T/T, 30% deposit and 70% before shipping.

---
