8mm Upward Oxyen-Free Copper Rod Continuous Casting Machine

Product Description

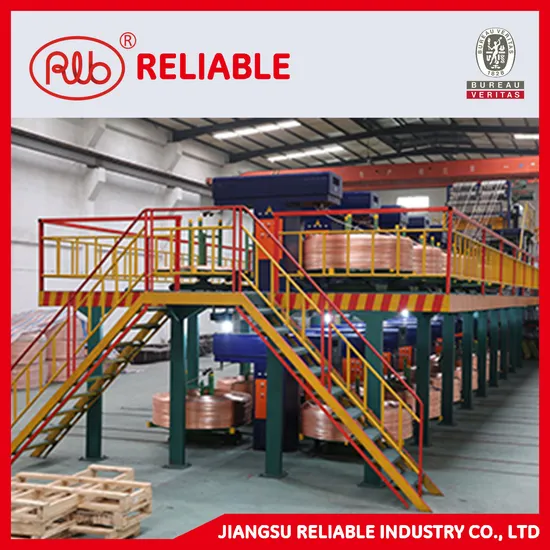

Copper Rod Continuous Up-casting and Rolling Production Line
1.Description:
Continuous free-oxygen copper rod up-casting production line produces large-length bright free-oxygen copper rod, tubes and pipes, flat billet and other profiles with higher conductivity and lower oxygen content, etc.
Compared with the traditional process, the features as follows: low investment, high efficiency, low production cost, simple production process, high quality, simple adjustment and no pollution.
The Production Line is composed of power frequency induction furnace, feeding system, continuous up-casting machine, limiting device, coiling take-up machine, water cooling system, temperature measurement system, electric control system and so on.
The design of all electrical control system is advanced and adopts programmable logic controller (PLC) + human machine interface (touch screen). The electrical control system controls the whole line linkage and monitors the running status.
2.Equipmetn Pictures:
3.Technical Parameters

Model	Strands Of Casting Rod	Up-Cast Size (Mm)	Frame Of Furnace	Yearly Output (Ton)	Take Up Form	Coil Weight (Kg)	Installed Power Volume	Actual Power	Electricity Per Ton ( Kwh/T )
SL04-Q2 - S-B-8/20	4	8-20	Two Compounding Furnaces	2000	Automatically Tracing Takeup, Automatically Transverse	≤3000kg	330	160	≤360
SL06-Q2- S-B-8/20	6	8-20	Two Compounding Furnaces	3000	Automatically Tracing Take-Up, Automatically Transverse	≤3000kg	330	180	≤350
SL06-Q2- S-A-16/30	6	16-30	Two Compounding Furnaces	3000	Automatically Tracing Take-Up, Manually Transverse	≤2500kg	330	180	≤350
SL08-QL- S-B-8/20	8	8-20	Three Compounding Furnaces	4000	Automatically Tracing Take-Up, Automatically Transverse	≤3000kg	480	230	≤340
SL10-QL- S-A-16/30	10	16-30	Three Compounding Furnaces	6000	Automatically Tracing Takeup, Manually Transverse	≤2500kg	480	270	≤340
SL10-QL- S-B-8/20	10	8-20	Three Compounding Furnaces	5000	Automatically Tracing Takeup, Automatically Transverse	≤3000kg	480	250	≤340
SL12-QL- S-B-8/20	12	8-20	Three Compounding Furnaces	6000	Automatically Tracing Take-Up, Automatically Transverse	≤3000kg	480	270	≤340
SL14-QG- S-A-16/30	12	16-30	Three Compounding Furnaces	8000	Automatically Tracing Takeup, Manually Transverse	≤2500kg	750	480	≤340
SL16-QR- S-A-16/30	16	16-30	Three Compounding Furnaces	10000	Automatically Tracing Takeup, Manually Transverse	≤2500kg	950	540	≤330
SL16-QG- S-B-8/20	16	8-20	Three Compounding Furnaces	8000	Automatically Tracing Take-Up, Automatically Transverse	≤3000kg	750	480	≤330
SL20-QW- S-B-8/20	20	8-20	Three Compounding Furnaces	10000	Automatically Tracing Takeup, Automatically Transverse	≤3000kg	950	500	≤320
SL20-QW2- S-A-16/30	20	16-30	Three Compounding Furnaces	12000	Automatically Tracing Take-Up, Manually Transverse	≤2500kg	1000	540	≤320
SL24-QW2- S-B-8/20	24	8-20	Three Compounding Furnaces	12000	Automatically Tracing Takeup, Automatically Transverse	≤3000kg	1000	540	≤320
SL24-QW3- S-A-16/30	24	16-30	Three Compounding Furnaces	15000	Automatically Tracing Take-Up, Manually Transverse	≤2500kg	1100	700	≤320
SL28-QW3-S-B-8/20	28	8-20	Three Compounding Furnaces	15000	Automatically Tracing Take-Up, Automatically Transverse	≤3000kg	1100	540	≤320
Running Form Of The Upward Casting System :Servo Motor

4.Layout:
5.Application Demonstration:
Equipped with different take-up device and crystallizer to produce different products.
Equipped with take-up device to produce copper rod. Copper rod is used for: cable, wire, electromagnetic wire, enameled wire, telephone line, data line, etc.
Equipped with take-up device to produce Copper alloy rod, used for: high-speed rail contact line, bearing support frame, copper shaft, copper sleeve, welding wire and other products
Equipped with take-up device to produce copper strip, used for: copper bar, copper strip, copper foil, electrical components and other products;
Equipped with conveyor line (or take-up device) to produce copper pipe, used for: air conditioning, industrial copper pipes, household copper pipes, joints and other products

---
