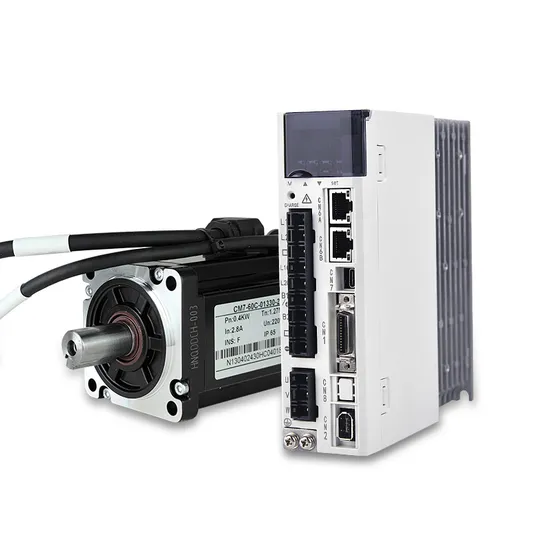

New AC Servo Motor and Driver Kit with Canopen System 200W 400W 600W 750W 0.75kw 0.4kw 1kw 1.2kw AC Servo Pulse Drive with Plug-in Type

Product Description

New AC Servo Motor and Driver Kit with Canopen system 200W 400W 600W 750W 0.75kw 0.4kw 1kw 1.2kw AC Servo pulse drive with plug-in type
Our high voltage AC servo motor, power range from 100W to 3kW, can be equipped with a variety of precision encoders,Suitable for our AC servo driver. This series of motors adopts the industry advanced magnetic circuit design and high temperature resistant permanent magnet material, the operation is very stable, the overload capacity is strong, the vibration noise and the heating are small, is the optional scheme to improve the equipment performance and reduce cost.
Series of application fields:
Novotech high voltage servo has the characteristics of high performance, high quality, low cost and so on, its size is small, easy to install, high performance-price ratio, high reliability; suitable for electronic processing equipment, automatic grasping equipment, special machine tools, textile and clothing equipment, feeding manipulator, packaging equipment, printing equipment, engraving equipment, wire processing equipment, laser processing equipment, battery processing equipment, ceramic equipment and so on. Meet the application requirements of high precision positioning control and smooth and low speed operation of machinery and equipment.
Specification of 60 series motor:

Motor model	HMS60-M00630	HMS60-M01330
Rated power (w)	200	400
Rated linear voltage (V)	220	220
Rated linear current (A)	1.1	2.1
Rated speed (rpm)	3000	3000
Rated torque (N.M)	0.64	1.27
Peak torque (N.M)	2.23	4.46
Back EMF (V/1000R/MIN)	32.6	32.3
Torque factor(N.m/A)	0.58	0.6
Rotor inertia (KG.M²)	0.26*0.0001	0.61*0.0001
Winding (inter-wire) resistance (Ω)	10.63	7.1
Winding (inter-wire) inductance (mh)	17.1	13.8
Electrical time constant (MS)	1.61	1.94
Motor insulation grade	CLASS F
Protection grade	IP65
Environmental requirements for use	Ambient temperature:-20 ºC to + 50 ºC ambient humidity: relative humidity < 90% (no frosting condition)

Mechanical dimension diagram of 60 series motor:
Matched driver drawing:
Plug-in type servo drawing(200w & 400w)
This type is easy for wiring,and easy for extend cables,better waterproof and sealing properties.
Specification of 80 series motor:

Motor model	HMS60-M01330	HMS80-M02430	HMS80-M04025
Rated power (w)	400	750	1000
Rated linear voltage (V)	220	220	220
Rated linear current (A)	2.3	4	5.6
Rated speed (rpm)	3000	3000	3000
Rated torque (N.M)	1.27	2.39	3.2
Peak torque (N.M)	4.46	8.36	11.1
Back EMF (V/1000R/MIN)	36.8	36.6	35.6
Torque factor(N.m/A)	0.55	0.6	0.57
Rotor inertia (KG.M²)	0.69*0.0001	1.71*0.0001	2.17*0.0001
Winding (inter-wire) resistance (Ω)	3.69	1.65	1.1
Winding (inter-wire) inductance (mH)	14.25	7.4	5
Electrical time constant (MS)	3.86	4.5	4.5
Motor insulation grade	CLASS F
Protection grade	IP65
Environmental requirements for use	Ambient temperature:-20 ºC to + 50 ºC ambient humidity: relative humidity < 90% (no frosting condition)

Mechanical dimension diagram of 80 motor:
Matched driver drawing:

---
