Basic Info.
Model NO.
Barbecue Wire Mesh
Application
Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages
Type
Stainless Steel Plain Wire Mesh
Material Type
Stainless Steel Wire
Weave Technique
Plain Weave
Wire Diameter
Least .0008
Export Markets
USA, Canada, Australia, Europe
Material Used
304, 316 and So on
USD
Foot, Mining, Chemical and So on
Specification
as requirement
Production Capacity
1000 Pcsper Week
Product Description

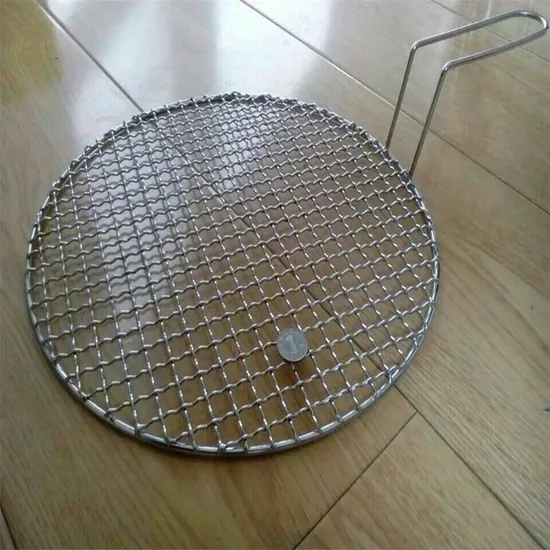

Stainless Steel Crimped Barbecue Grill Wire Mesh
1,
Detail description as follows:
Material: stainless steel wire, mild steel galvanized wire or welded wire, crimped wire netting.
Finish: Zinc coated or chromium plated
Characteristics: Bright color, good structure, export standard
2.By material:
Mild steel wire, medium carbon steel wire, stainless steel (304)
3.By handle:
Handled BBQ Wire Mesh;Handleless BBQ Wire Mesh
4.Material:ss 304 wire, galvanized iron wire, medium carbon steel wire
Process:Welded, crimped
Surface Treatment:Galvanized, electrolyzed; polished;
5.Benefits:
High temperature resistance, rust resistance, tasteless , easy to use,etc
Application:used to roast , smoke or raise meat like children, pork,beeg,fish,etc,wheaten food,vegetable and so on.
| Mesh | Wire Diameter | Mesh | Wire Diameter | Mesh | Wire Diameter |
| 3 | 1.0mm | 24 | 0.19mm-0.5mm | 90 | 0.1mm-0.12mm |
| 4 | 0.7mm-1.5mm | 26 | 0.19mm-0.4mm | 100 | 0.07mm-0.14mm |
| 5 | 0.6mm-1.2mm | 28 | 0.19mm-0.35mm | 110 | 0.08mm-0.09mm |
| 6 | 0.5mm-1.0mm | 30 | 0.15mm-0.4mm | 120 | 0.07mm-0.1mm |
| 7 | 0.5mm-0.8mm | 32 | 0.17mm-0.3mm | 140 | 0.06mm-0.07mm |
| 8 | 0.4mm-1.0mm | 34 | 0.23mm | 150 | 0.06mm-0.07mm |
| 10 | 0.3mm-1.0mm | 35 | 0.25mm-0.3mm | 160 | 0.06mm |
| 12 | 0.3mm-0.8mm | 36 | 0.15mm-0.28mm | 180 | 0.05mm |
| 14 | 0.27mm-0.7mm | 40 | 0.12mm-0.27mm | 200 | 0.05mm-0.06mm |
| 16 | 0.25mm-0.7mm | 50 | 0.13mm-0.25mm | 300 | 0.03mm-0.04mm |
| 18 | 0.20mm-0.55mm | 60 | 0.1mm-0.19mm | 400 | 0.023mm-0.03mm |
| 20 | 0.19mm-0.55mm | 70 | 0.1mm-0.15mm | 500 | 0.025mm |
| 22 | 0.21mm-0.5mm | 80 | 0.08mm-0.17mm | 635 | 0.018mm |
Detailes
