US$90.00-110.00
|
4 Pieces
(MOQ)
|
Basic Info.
Power Type
Permanent-magnet DC
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Beach
Transport Package
Export Carton Box
Specification
377(L) mm X 128.2 (W) mm X123 (H) mm
Production Capacity
6000/Per Month
Product Description

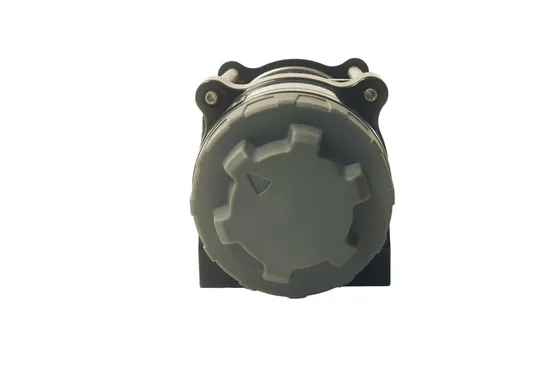

We all know big rigs require bigger winch, and that's why we are introducing the 6000lB winch! You get a dash switch and a wired or wireless remote, full-length waterprood wiring harness, pull strap, roller fairlead, and more that'll make your life earlier.
| Rated line pulls: | 6000 lbs. (2722 kg ) |
| Motor: | Permanent magnet motor(Input Power)1.74 hp / 1.3kW (DC 12V) |
| Gear reduction ratio: | 166:1 |
| Free Spooling Clutch: | Turn |
| Fairlead: | Roller |
| Overall dimensions: | 14.84" x 5.05" x 4.84" (377mm X 128.2 mm X123 mm) |
| Drum size: | Ø 2.24" x 4.72" ( Ø 57mm x 120 mm) |
| Rope: | Ø 1/4" x60' (Ø 6.4mm x 15.3 m) |
| Mounting bolt pattern : | 6.57" x 2.99"( 167(L) mm x 76 (W) mm) |
12 DC Performance specs (First layer of drum)
| Line pull | Line speed | Motor | Pull by layer |
|
| lbs. (kg) | ft/min (m/min) | Current | Layer/Lbs.(kg) |
| 0 | 17.4 (5.3) | 20 amps | 1/6000 (2722) |
| 500 (227) | 15.4 (4.7) | 40 amps | 2/4992 (2264) |
| 1000 (454) | 14.1 (4.3) | 60 amps | 3/4274 (1937) |
| 1500(680) | 12.5 (3.8) | 80 amps | 4/3766 (1708) |
| 2000 (907) | 11.8 (3.6) | 100 amps | |
| 2500 (1134) | 10.8 (3.3) | 115 amps | |
| 3000 (1361) | 10.2 (3.1) | 140 amps | |
| 3500 (1588) | 9.5 (2.9) | 150 amps | |
| 4000 (1814) | 8.5 (2.6) | 175 amps | |
| 4500 (2041) | 7.9 (2.4) | 185 amps | |
| 5000 (2268) | 7.2 (2.2) | 205 amps | |
| 5500 (2495) | 6.6 (2.0) | 220 amps | |
| 6000 (2722) | 5.9 (1.8) | 240 amps | |
Multiple order qty:30
G.W/N.W:14.22/12.42kg(1PC/CTN)
Shipping Carton Size:46*32*18cm(1PC/CTN)
FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
we can sure within 30-35 days delivery time, but depends on the quantity !
>>
