US$6,000.00-59,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Spider Placing Booms
Machining Process
Hydraulic
Certification
ISO9001: 2000, CE
Max. Placing Radius (M)
13
Medium Arm Length (M)
4.52
Medium Arm Elevation (°)
0-180
Small Arm Length (M)
4.78
Tail Rotary Radius (M)
2.72
Transport Package
Nude Packed in Container
Production Capacity
20 Pieces/Month

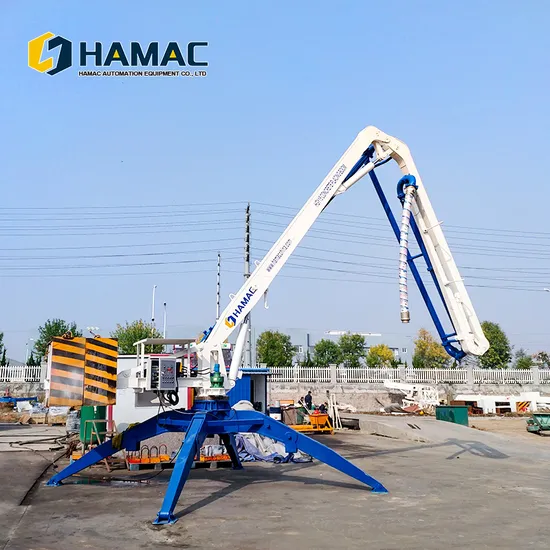

Product Description
| Item | HGY13 | HGY15 | HGY17 | HGY21 |
| Max. Placing Radius (M) | 13 | 15 | 17 | 21 |
| Big Arm Length (M) | 3.7 | 6 | 6.66 | 6.496 |
| Big Arm Elevation (°) | -2~84.4 | 0~70 | 0~65 | 0~65 |
| Medium Arm Length (M) | 4.52 | 5 | 5.73 | 4.585 |
| 4.59 |
| Medium Arm Elevation (°) | 0~180 | 0~180 | 0~180 | 0~180 |
| 0~180 |
| Small Arm Length (M) | 4.78 | 4 | 4.61 | 5.029 |
| Small Arm Elevation (°) | 0~180 | 0~180 | 0~180 | 0~180 |
| Hose Length (M) | 3 | 3 | 3 | 3 |
| Concrete Delivery Pipe (Mm) | Ø125×6 | Ø125×6 | Ø125×6 | Ø125×6 |
| Tail Rotary Radius (M) | 2.72 | 2.81 | 3.51 | 3.51 |
| Total Power (Kw) | 4 | 4 | 5.5/7.5 | 11 |
| System Pressure (MPa) | 24 | 24 | 24 | 24 |
| Rotary Speed (R/Min) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 |
| Rotary Range (°) | 0~360 | 0~360 | 0~360 | 0~360 |
| Supporting Legs Span (M) | 3.15×3.15 | 4×4 | 4.6×4.6 | 4.6×4.6 |
| Overall Height (M) | 2.9 | 2.6 | 3.2 | 3.2 |
| Bare Machine Weight (Kg) | 2700 | 3230 | 5000 | 10000 |
| Balance Weight (Kg) | 2×900 | 2×1100 | 2200 | 2×2500 |
| Control Mode | Panel/ Wireless Remote Control | Panel/ Wireless Remote Control | Panel/ Wireless Remote Control | Panel/ Wireless Remote Control |
★ Why should you buy from us not from other suppliers?
Over decades experience in construction & mining machinery,
Professional sales team and technical support;
Abundant export service & logistic service;
Several professional production bases to provide you with goodquality machine in short time.
★ What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DAF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,French,Russian
>>
