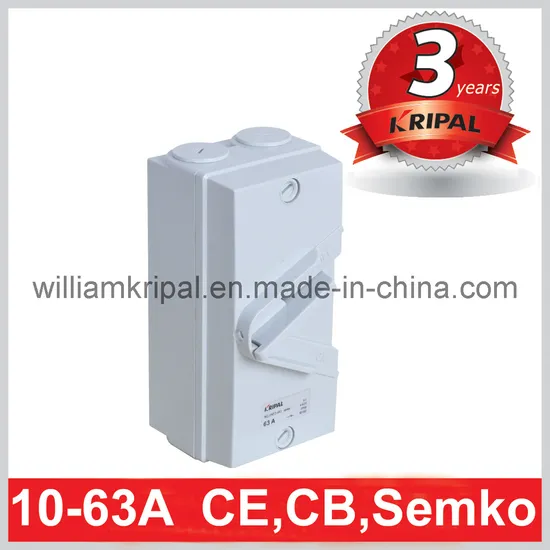

IP66 63A 4p Isolating Switch / Isolator Switch

Product Description

Product Description Isolating Switch / Isolator switch
Three type: UKF1, UKF2 UKF3, the differences are the outlook and the function are the same.
Pole: 1P, 2P, 3P, 4P
Rated Current: 10A, 20A, 35A, 63A
UKF4 mini isolator switch:
Pole: 1P, 2P
Rated current: 10A, 16A, 20A, 35A
1. Cables looped in and out from overhead.
2. In and out from underground
3. In and out straight through the switch.
4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
5. Samples provided freely.

Type		UKF1-120	UKF1-135	UKF1-163	UKF1-220	UKF1-235	UKF1-263	UKF1-320	UKF1-335	UKF1-363	UKF1-420	UKF1-435	UKF1-463
		UKF2-120	UKF2-135	UKF2-163	UKF2-220	UKF2-235	UKF2-263	UKF2-320	UKF2-335	UKF2-363	UKF2-420	UKF2-435	UKF2-463
		UKF3-120	UKF3-135	UKF3-163	UKF3-220	UKF3-235	UKF3-263	UKF3-320	UKF3-335	UKF3-363	UKF3-420	UKF3-435	UKF3-463
Insulation voltageUi(50Hz)		250	250	250	440	440	440	440	440	440	440	440	440
Working VoltageUe(50Hz)		250	250	250	440	440	440	440	440	440	440	440	440
Power frequency(KV) voltage		1.5	1.5	2.5	1.5	1.5	2.5	1.5	1.5	2.5	1.5	1.5	2.5
Rated irregular load(A)		20	35	63	20	35	63	20	35	63	20	35	63
Rateduninterruptedworking system:		Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Number of poles		1P	1P	1P	2P	2P	2P	3P	3P	3P	4P	4P	4P
Singlecablesectioncross-strand	Min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
	Max	16	16	25	16	16	25	16	16	25	16	16	25
Cablesectionmany cross-shares	Min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
	Max	10	10	16	10	10	16	10	10	16	10	10	16
EN60947-3-1		250	250	415	415	415	415	415	415	415	415	415	415
Use of categoriesAC23		20	35	63	20	35	63	20	35	63	20	35	63
Short-term rated(A)1/Secvoltage		240	384	756	240	384	756	240	384	756	240	384	756
Breaking capacity		0.5	0.5	1	0.5	0.5	1	0.5	0.5	1	0.5	0.5	1

Company Profile Zhejiang Kripal Electric Co., Ltd. Zhejiang Kripal Electric Co.,Ltd is one of the national new high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.
Surface Mount Kripal 40A Main isolator switch 3 single phase changeover switch 4p padlocked switch
Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development. With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of "Famous Export Brand". 20A isolating switch
