Free Shipping Mini Excavator 1ton 1.2ton EPA Farm New Crawler Digger Kubota Engine Small Excavators Machine Prices

Product Description

Product Description

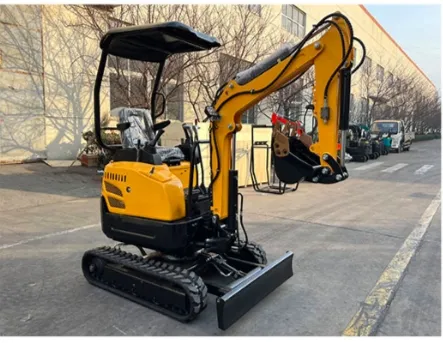

Powerful and affordable mini excavators
These mini but powerful machines are now the go-to choice for small construction projects. Due to their compact size, mini excavators can maneuver easily in places where large excavators struggle, making earthmoving easy and speeding up projects.

Detailed Photos
piston pump load sensitive,soft and powerful action,low engine temperature,engergy and fuel saving.
double row bead slewing support. high speed .high efficiency. more flexible and more stable.
double-rotary motor ,double rotary suport force is large.long life,play a buffer role,soft, comfortable and satble movement.
the track length of 41 sections increases the ground contact area and makes walking more stable ,tailess swing. flexible and convenient.
american eaton walking motor self-braking integrated motor with high efficiency and stale operation.
hammer cut-off valve,durable and wear-resistant cast steel material,good mechanical performance,prevent oil dripping and leakage.
Product Parameters

MODEL		KV13
Bucket capacity	cbm	0.025
Chassis width	mm	1100
Track length	mm	1300
Gradeability	degree	40
Chassis ground clearance	mm	385
Track width	mm	180
Volume of fuel tank	L	3.5
Overall dimension	mm	2200*1100*2200
Transport length	mm	2400
Excavatr height	mm	2200
Hydraulic flow	L/Min	40
Hydradulic tank capacity	L	16
Working pressure	Mpa	16
Engine		koop 192f diesel engine
Engine power	kw	7
EPA engine optional		Briggs&Stratton gasoline/13.5hp
Max.digging height	mm	2550
Max. dumping height	mm	1850
Max.digging depth	mm	1650
Max.digging radius	mm	2400
Turning radius	mm	1190
Bucket excavating force	KN	11
Operating weight	KG	1000
Configuration		Valve:beifang brand
		Pump:k jun brand
		load sensitive system

Application Scenario
Packaging & Shipping

After Sales Service

Company Profile

FAQ
Q1: Are you a manufacturer?
A1: Yes. We have ourselves factory, our products are designed and developed by ourselves,have 3000 square meters factory.
Q2: What is your quality control process?
A2:We do 100% testing for all products before packing. We have an excellent QC process and department, they will check every product to make sure it can be used before shipment.
Q3: How long is your guarantee term?
A3: Our product have one year guarantee.
Q4: What's the payment way?
A4: T/T,L/C,D/P,D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash.
Q5: Do you accept ODM/OEM orders?
A5: Yes,we can accept OEM/ODM ,MOQ:5pcs you can change logo and functions if you need.
Q6: how can we guarantee quality?
A6: Always a pre-production sample before mass production;
Q7: what can you buy from us?
A7:Excavator,Forklift,Loader,Grader,Bulldozer

---
