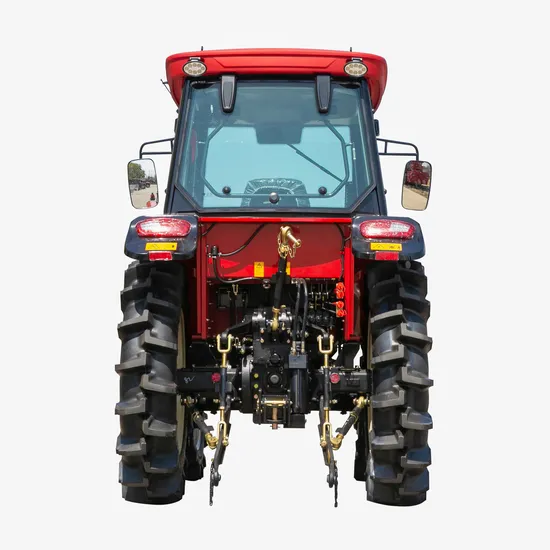

High Quality Agricultural Machinery Agricultural Tractor

Product Description

Feature
1.The shift synchronizer makes shifting lighter and convenient.
2.Equipped flat tire as standard, Paddy tire optional.
3.Adopt technology of chassis of ltaly Fiat for better performance.
4.Adopt transmission 16+8 shuttle for easier operation, transmission 24+24 shuttle
optional.
5.Good sealing perforamnce of axles ensure working in water or deep mud field.
6. Use rear double steering cylinders on front axle for reducing turning radius.
7.Water tank uses three-dimensional dust proof net which enlarges air inlet area, also
prevents debris from entering tank.. Air brake is optional for road transport,
8.High quality bearings are used for long work prolonging work life.
9.Equipped ROPS&Canopy as standard,Cabin optional for comfort.
Parameter

Model		WD904
Structure		4x4
Engine	Power@speed(HP)	90@2300
Engine Type		4 cylinder, Inline
Fuel Tank Capacity(L)		150
Air Cleaner		Dry/Wet
Transmission	No. of Speed	16+8 Creeper
Main Clutch		Double
Brake		Hydraulic disc
PTO Speeds(rpm)		760/850(option540/1000)
Category Il &3 point hitch		Category Il &3 point hitch
Suspension	Control System	Position, draf(opt)
Lift Capacity at behind lit point(KG)		1621
Tires		13.6-24/16.9-34
Travelling Speed(Max.) (Km/H)		34.9
Optional Balance Weight Front/Rear (KG)		320/180
Weight (KG)		3650 Canopy/3950 Cabin
Steering		Hydraulic Power Steering
Dimension(mm)		4250*2080*2820
Ground Clearance(mm)		379
Wheel Base Front/Rear(mm)		1610/1620

---
