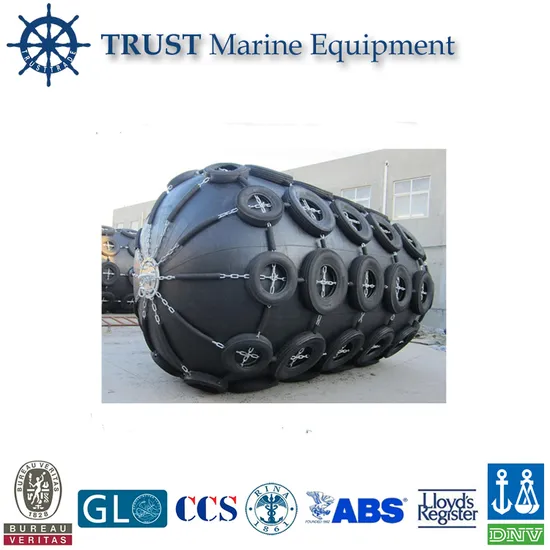

Marine Pneumatic Rubber Fender, Air Bag

Product Description

Pneumatic Rubber Fender, Air Bag, O Ring Rubber Bag
Product overview
We're specialized in manufacturing integrative twin marine pneumatic rubber fenders and marine airbags for ship upgrading or launching.
The technology of integrative twine marine pneumatic rubber airbag products is a new technology created originally by our factory. Basing on this technology, we have further developed marine pneumatic rubber fenders for ship's side protection against collision. The new products of marine pneumatic rubber fender have passed provincial new-product appraisal in 1998, and every technical indexes of the products have achieved or surpassed that of the same products from abroad, which filled the blank in China.
The company accords with three industrial standards of CB/T 3795-1996"Air-bag for Ship Upgrading or Launching" and CB/T 3837-2001 Pneumatic Rubber Fenders for Ship, and it is awarded the title of "Advance Unit with Standard Work" by Quality Supervision Office.
The factory owns the advanced manufacture technique and complete test means, insists on the quality policy of "Pursue quality credibility; Create Changlin brand", and sets up perfect quality guarantee system according to the standard of ISO9001 (2001 edition). The company possesses several senior engineers and a group of qualified staffs, the self-governed capability to develop products, and develops and manufactures many high-quality products used in ships.
Catalog of size and performance
-- yokohama pneumatic fender

Size	Initial internal pressure	Guaranteed energy absorption GEA(kJ)	Reaction force at GEA deflection R((kN))
D×L(m)	(Kpa)	Minimum value at deflection 60±5%	Tolerance ±10%
0.5×1.0	50	6	64
0.6×1.0	50	8	74
0.7×1.5	50	17	137
1.0×1.5	50	32	182
1.0×2.0	50	45	257
1.2×2.0	50	63	297
1.35×2.5	50	102	427
1.5×3.0	50	153	597
1.7×3.0	50	191	639
2.0×3.5	50	308	875
2.5×4.0	50	663	1381
2.5×5.5	50	943	2019
3.0×5.0	50	1210	2104
3.0×6.0	50	1485	2583
3.3×4.5	50	1175	1884
3.3×6.0	50	1675	2783
3.3×6.5	50	1814	3015
3.3×10.6	50	3067	5257
4.5×9.0	50	4752	5747
4.5×12.0	50	6473	7984

Packaging & Delivery

Packaging Details:	Standard export package, or according to client's requirements.
Delivery Detail:	Shipped in 15-20 days after payment

Product drawing
Detailed images
