Basic Info.
Structure
Vertical Drilling Machine
Controlling Mode
Artificial
Automatic Grade
Automatic
Tapping Capacity
Steel/Aluminum/Stainless Steel:M3-M16
Bearing Scope of Thread
M3-M16
The Spindle Ratd
0-312r/Min
Standard Accessories
Tapping Arm, Servo Motor, Reducer, Tap Holder
Transport Package
Wooden Box
Specification
670*650*220
Production Capacity
1500/Months
Product Description

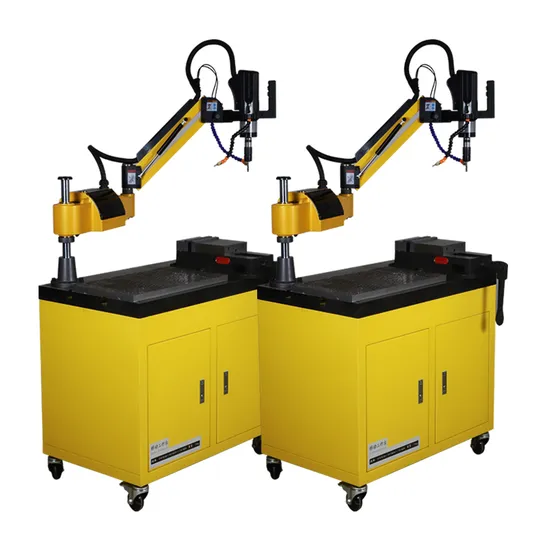

Product Introduction
Electric Tapping Machine | Pneumatic Tapping Machine |
Model | RS-M16 | RS-M24 | RS-M36 | RS-M42 | RS-M12 |
Voltage | 220V-600W-50HZ | 200V-1200W-50HZ | 220V-1200W-50HZ | 220V-1200W-50HZ | Gas pressure 8-10KG |
Tapping capacity | M3-M16 | M6-M24 | M6-M36 | M16-M24 | M3-M12 |
Max radius | 1000MM | 1200MM | 1200MM | 1300MM | 900MM |
Highest speed | 312r/min | 200r/min | 150r/min | 250r/min | 400r/min |
Heavy volume | 25KG | 50KG | 50KG | 110KG | 20KG |
Way to work | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
Tapping chuck | GT12,M3-M16 Standard,Optional | GT24,M6-M24 Standard,Optional | GT24,M6-M36 Standard,Optional | GT48,M16-M42 Standard,Optional | GT12,M3-M12 Standard,Optional |
Lubrication time | 0.1-25s | 0.1-25s | 0.1-25s | / | / |
Lubrication blowing | Infinite | Infinite | Infinite | / | / |
Workbench | 980*680*700 | 980*680*700 | 980*680*700 | / | 900*600*700 |
Product Feature
. High tapping efficiency to spare manual work for adding oil and blowing scraps. Improvimg tapping working life,blowing scraps when pull back so as to keep the lubrication state of tapping, and the cooling function could help to keep screw taps in a low temperature. High precision,both adding oil and blowing scraps when tapping could help to keep the screw taps clean,which could highly increase the tapping accuracy. Tough and strong screw taps,which means adding oil and blowing scraps simultaneously to help tapping procedure more smoothly
. Reduce labor intensity, the operator is only responsible for swinging the nose,aiming at the hole position,pressing the switch to directly attack the teeth
FAQ
1.What is your advance? (1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity? One set is acceptable 3. How about the payment Term? We accept T/T,Western Union,LC 4. What's your port? Shanghai5. Can we use our own shipping agent?
Yes,you can.We had cooperated with many forwarders.If you ned,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
d,we can recommen Yes,you can contact with the salesman.And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
>>
