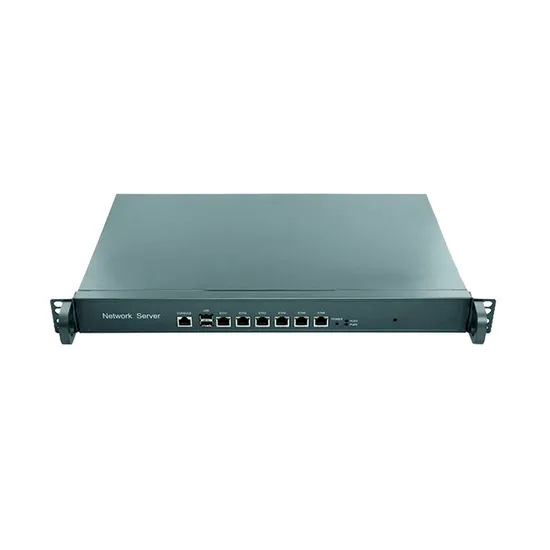

1U 6 Gigabit LAN 2th/3th Intel® Core™ i3/i5/i7 CPU Rackmount Network Appliance
| Chassis | Color | Light silver black |
| Dimensions | 430mm(W)*281mm(D)*45mm(H) |
| Structure | 1U Rackmount Metal Enclosure |
| Material | Galvanized steel sheet |
| Motherboard | Model No. | H67SL |
| Processor | Support LGA1155 2th/3th Intel® Core™ i3/i5/i7 CPU |
| BIOS | AMI 32MB Flash ROM |
| Memory | Provide 2*DDR3 SODIMM slot, support dual channel 1333/1066MHz memory, up to 16GB |
| Storage | 2.5'HDD | 2*2.5" or 1*3.5" HDD extension |
| CF | 1* CF card socket (CF and MSATA optional) |
| SSD | 1* MSATA slot , support Intel protocol SSD, transmission rate up to 6Gbps |
| System Feature | Ethernet | Intel 82583V, 1000/100/10Mbps,6x LAN (Bypass custom optional) |
| USB | 2* USB2.0 |
| Serial Port | 1* CISCO COM (COM1 and USB4 optional) |
| Display | 1* VGA |
| Audio | N/A |
| Expansion Interface | 2* MINIPCIE(1 is MSATA,1 is for WIFI /3G Model) |
| Indicator | Power Indicator Light,HDD Indicator Light |
| System Control | System Switch and AC power connector |
| Wireless | N/A |
| Power | Power | 220W |
| Reliability | Installation | 1U Rackmount |
| Operating T | -10°C~60°C |
| Storage T | -20°C~70°C |
| Relative humidity | 5%-95%, no condensing |
| Vibration | 0.5g rms/5-500HZ/random/operating |
