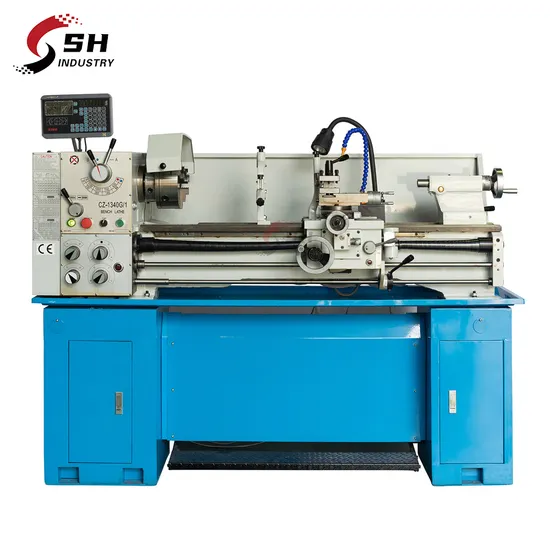

Horizontal Metal Small Hobby Bench Lathe Machine CZ1340g/1 CZ1440g/1 Cheap Bench Lathe Price

Product Description

Horizontal metal small Hobby Bench Lathe Machine CZ1340G/1 CZ1440G/1 Cheap Bench Lathe Price Product Description
Characteristics:
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel,ground and hardened gear inside headstock
Easy and fast operating gear box
Enough strong power motor
ASA D4 camlock spindle nose
Various threads cutting functions available
Main technical parameters:

Specifications		CZ1340G/1 / CZ1440G/1
Swing over bed	mm	330/355
Swing over carriage	mm	195/220
Swing over gap	mm	476/500
Width of bed-way	mm	186
Distance between centers	mm	1000
Spindle taper		MT5
Spindle bore	mm	38	51
Step of speed		8	8
Range of speed	rpm	70-2000	84-1850
Head nose		D1-4	D5 with D5' chuck
Metric thread	mm	26 kinds(0.4-7)
Inch thread	T.P.I	34 kinds(4-56)
Module thread	M.P	16 kinds(0.35-5)
Diametral thread	D.P	36 kinds(6-104)
Longitudinal feeds	mm/r	0.052-1.392(0.002''-0.0548'')	0.091-2.533(0.0036''-0.1005'')
Cross feeds	mm/r	0.014-0.38(0.00055''-0.015'')	0.025-0.69(0.0012''-0.0345)
Diameter of lead screw	mm	22
Pitch of lead screw		3mm or 8 T.P.I
Saddle travel	mm	1000
Cross travel	mm	170	160
Compound travel	mm	74	70
Barrel travel	mm	95
Barrel diameter	mm	32
Taper of center	mm	MT3
Motor power	Kw	1.5(2HP)
Coolant motor	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1920x760x760
Stand (left)(L×W×H)	mm	440x410x700
Stand (right)(L×W×H)	mm	370x410x700
Machine(N.W/G.W)	Kg	505/565
Stand(N.W/G.W)	Kg	70/75

Standard accessories:
Stand
4 jaw chuck
Work lamp
Coolant pump
brake
Optional accessories :
Drill chuck
Lead screw guard
4 jaw chuck seat
Taper shank
Work lamp
Tool post guard
Live centers
Coolant system
Chuck guard
Face plate
Taper turning attachment
Back plate
Foot brake
Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
