4000kg/Hr Food Bottle Grade Pet Bottle Crushing Washing Recycling Machine

US$60,000.00-300,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HR-4000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Machine Material
Carbon Steel or Stainless Steel 304
Flakes Size
8-20mm According to Customer
Flakes Function
Fiber ,Bottle, PSF,Strap
Color
Customizer
Capacity
500-6000kg/H
Moisture
Less Than 1%
Label Content
Less Than 20ppm
PP PE Content
Less Than 20ppm
Transport Package
Film Packaging
Specification
100m*10m*8m
Trademark
HAORUI
Origin
China
HS Code
8477800000
Production Capacity
500-6000kg/H

Product Description

Product Description

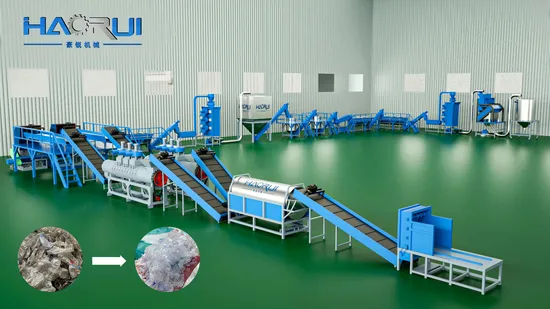

4000kg/Hr Food Bottle Grade Pet Bottle Crushing Washing Recycling machine
This 4000kg/h PET bottle hot washing recycling machine was we shipped to Thailand already.
Ths customer is our old customer, mainly produce food or fiber grade PET flakes, and export to Europe and Turkey.
He bought our 3tons/h line in 2019, and now he has good business ,and expand his factory , bought a 4tons/h line .
our Advantage
1. Long manufacturing history over 30years.
Our factory was established in 1992. Over 30 years experience,we can give customers a professional solution, help customer avoid investment mistake and reduce learning cost.
2.R&D engineer 5 persons
Based on our excellent R&D engineers,we keep improving our machines, insure our machines newest technology ,and machines excellent performance with customers.
3.We always keep the principle "quality is first".
We promise to use all new technology,new material ,enough thickness to keep the good quality, grantee is 1 year.
4.100+ Workers and 30000m2 factory
We are 100% end manufacturer, all machines from first metal cut to final painting , all process are finished in our own factory ,so we can provide most competitive price and short delivery time.
Small capacity line within 25days, big capacity line within 50days.
5.13 patent certifications
We keep improving our technology, we have our own PET bottle recycling factory in China and use our machines,So we know what problem the machines have during working and keep improving it and get 13 patent certifications,We do good business in China and created famous "HAORUI"brand.
6.OEM and Export
OEM or Agent is welcomed.And over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia ,USA and so on, created Famous "HAORUI" brand in Africa.

Detailed Photos
Bottle pre-washing system&Trommel screen
Specially designed for big capacity line,it is to remove the impurities before crushing,like the sand ,stone,and even mud on the bottles, that is a very important process to clean the plastic , reduce the production cost and reduce damaging to the following machines.

Lable remover Unique design blade quantity and shape,with patent certification.
Our most hot-selling item High label remove rate(round bottle> 99% , bale bottle> 96% )
Don't damage bottles, reduce neck broken, reduce material loss. Good design label separation chamber, can used for wet bottle, label come out well, not block.
Crusher
110kw motor power
16pcs rotating blades, 4pcs fixed baldes Heavy duty model, high speed crushing

Floating tank
Thick metal,more than 4mm thickness
Separate caps and rings
Flakes come out smooth, don't block.
Hot washer
Full wash the dirty, glue, oil...
Key point to make the flakes clean and bright, sell a higher price and make better more new products. Plate thickness 4mm at least, or customized according to customer.
Double layers with thick insulation cotton, low energy consumption
Over designed size, insure really capacity,insure all flakes stay in hot water 15-20minutes to reach full washing.
With time controller ,easily operate.

High speed friction washer
Remove the dirty sand of the flakes through high speed friction,thus PET flakes will be very clean.

Dewatering machine
Blade thickness 6mm-12mm (carbon steel or SS304),customized according to customer
Blade material after heat treating, longer using time
Blade is detachable, saving accessories cost
Easily change mesh and blade.Saving maintenance time.
The part of the inlet and outlet using thick metal,machine long lifetime.
Zig zag label separator
Unque design, with 3sets blowers to separate the label,means 3 times separation. the separation rate is much higher.


Product Parameters

SN: Item name: Function
1 Bale Opener machine Feeding the material equally
2 Conveyor Feeding material
3 Trommel and bottle prewashing system Remove the sand, rocks and other dirty from the bottles
4 Conveyor Feeding material
5 Label Remover Remove labels from Bottles
6 Manual sorting table Sorting out remain labels, remain different bottles and so on
7 Crusher Crushing the bottles into flakes
8 Screw Conveyor Conveying material
9 1st Auto floating washing tank Washing out the Floating caps, rings and dirty
10 1st High Speed Friction washer With high speed Friction Washing out dirty
11 Hot washing tank With Hot water washing and chemical to remove glue, oil, and dirty
12 Screw Conveyor Conveying material
13 2nd High Speed Friction washer With high speed Friction Washing out dirty and Chemical water from flakes
14 2nd Auto floating washing tank Washing out chemicals, floating caps, rings and dirty,
15 3rd Auto floating washing tank Washing out floating caps, rings and dirty,
16 Horizontal Dewatering Machine Remove the humidity from the flakes
17 Hot Air Drying system Drying the flakes
18 Zig-Zag Air Classifier Remove the fin dust and small labels
19 Flakes color sorter machine
20 Flakes polymer sorter machine
21 Automatic packing system Collecting the flakes
22 Electrial contol panel Used to control the whole Line
23 Free spare parts
PET bottle washing/recycling line/plant can be customized according to your requests.

machine PET bottle crushing washing drying line
capacity 4000kg/h
Solution Dirty PET bottle into clean and dry PET flakes
Flakes size 8-16mm
Flakes grade Food /fibre
Machine size 100m(L)*6m(W)*6m(H)
Energy consumption 500kw/h
Water consumption 6tons/h(recycled)
workers 15~20 workers

Final flakes
