100/125/150/200mm Casters Heavy Duty 4/5/6/8 Inch Caster Swivel PU Industrial Castor Wheel with Metal Brake

Product Description

Product Description

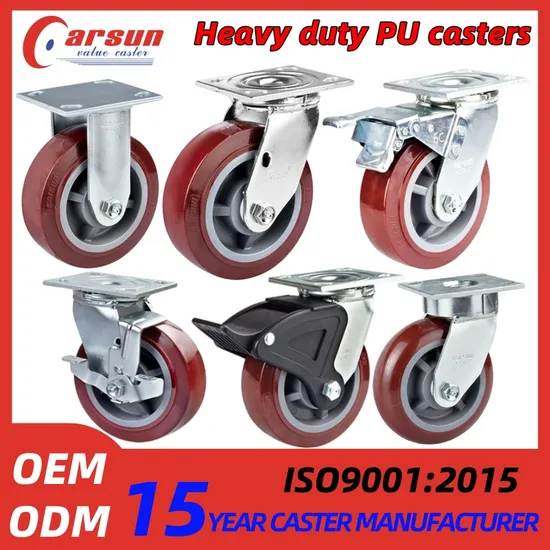

100/125/150/200mm casters Heavy Duty 4/5/6/8 inch caster PU Industrial Castor wheel with metal brake

Size	Wheel material	Bearing	Wheel Diameter& Wide	Load capacity	Top Plate size	Bolt hole spacing	Bolt hole diameter	Overall height	Product No
4inch	PU	Double bearing	100*51mm	295kg	114*102mm	92*76mm	11.2mm	143mm	4-4T01S-401G
4inch	PU	Roller bearing	100*51mm	295kg	114*102mm	92*76mm	11.2mm	143mm	4-4T01S-401E
4inch	PU	Delrin bearing	100*51mm	295kg	114*102mm	92*76mm	11.2mm	143mm	4-4T01S-401C
5inch	PU	Double bearing	125*51mm	340kg	114*102mm	92*76mm	11.2mm	165mm	4-5T01S-401G
5inch	PU	Roller bearing	125*51mm	340kg	114*102mm	92*76mm	11.2mm	165mm	4-5T01S-401E
5inch	PU	Delrin bearing	125*51mm	340kg	114*102mm	92*76mm	11.2mm	165mm	4-5T01S-401C
6inch	PU	Double bearing	150*51mm	410kg	114*102mm	92*76mm	11.2mm	191mm	4-6T01S-401G
6inch	PU	Roller bearing	150*51mm	410kg	114*102mm	92*76mm	11.2mm	191mm	4-6T01S-401E
6inch	PU	Delrin bearing	150*51mm	410kg	114*102mm	92*76mm	11.2mm	191mm	4-6T01S-401C
8inch	PU	Double bearing	200*51mm	450kg	114*102mm	92*76mm	11.2mm	241mm	4-8T01S-401G
8inch	PU	Roller bearing	200*51mm	450kg	114*102mm	92*76mm	11.2mm	241mm	4-8T01S-401E
8inch	PU	Delrin bearing	200*51mm	450kg	114*102mm	92*76mm	11.2mm	241mm	4-8T01S-401C

Please contact us for more product details!
Related Products

Product Usage (Applications)
Packaging & Shipping
Company Profile
We not only produce various standard casters commonly used in the industry, but also provide customized services according to customers' requirements.
We can produce castors that meet the EU ROHS environmental protec tion standards, and also produce medical castors that meet the international SGS medical testing standards. Since its inception, the company has established a perfect quality management system and successfully passed the ISO9001:2015 quality management system demonstration. In order to effectively ensure the product quality, the company has prepared various caster testing facilities to make it clear that the products must be tested in strict accordance with the quality management standards before leaving the factory, such as product life test, salt spray test, impact resistance test and so on.
FAQ
1.Q: Are you manufacture or trading company?
A: We are manufacture. Our factory has been specializing in all kinds of caster wheels since 2014.

2.Q: Where is your factory? Can I visit ?
A: Our factory is located in Dongguan, Guangdong China. It's an hour's drive from Guangzhou Baiyun International Airport.You are warmly welcome to visit whenever you are available.

3.Q: What is your delivery time?
A: In general, within 20 days. It also depends on the order quantity.

4.Q: What is the term of payment?
A: Payment terms: 50% of deposit upon signing the PI, and balance will be cleared by T/T or L/C before delivery.

5.Q: Can I get some samples? And what's the timing?
A: Yes, samples are available at any time. We charge some sample cost and will return it during the next order.

6 .Q: How can your factory control the quality?
A: Quality is at the forefront of our commitments to our customers always. We have strict quality management process from raw
material to finished product. Details please ref below:
-- Material Vendor Assessed.
-- Incoming material inspected(IQC)
-- In-line product 100% Check(QC)
-- 100% inspect before packing(QC)
-- According to standard or customer's requirement to check random after final packing to ensure the quality(QA)

7. Q: What's the MOQ?
A:Normally we take the order no matter it's big or small. If your qty is less than 5pcs per SKU, we will arrange it in our sample room specially.

8. Q: Can I make my own brand?
A: Yes, we do both OEM and ODM, so you can make your own logo on the bags.

---
