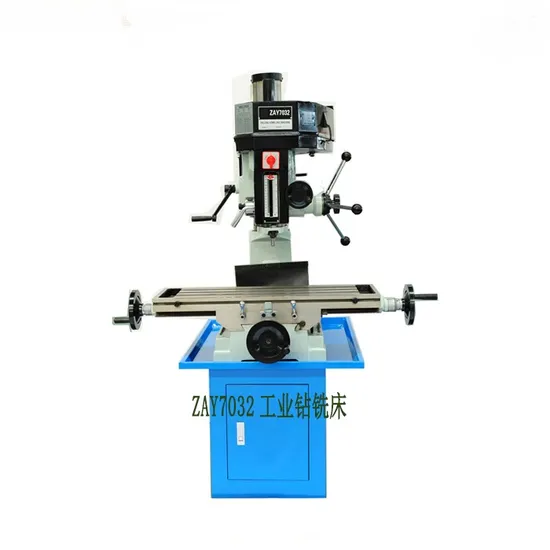

ZAY7032 high precision Metal Drilling and Milling with Power Feed

Product Description

Feature
Milling and drilling machine
Belt-driven type and round column
Milling ,Drilling ,boring ,reaming
12 Steps speed
Adjustable gibs on table precision
Posive spindle lock
Main specification

Model	ZAY7020	ZAY7032	ZAY7040	ZAY7045
Drilling capacity	20mm	32mm	40mm	45mm
Face milling capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Distance from spindle nose to table	435mm	450mm	450mm	450mm
Min.distance from spindle axis to column	181.5mm	203.5mm	203.5mm	203.5mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	12	12	12	12
Range of spindle speed 50Hz	100-2200 r.p.m	80-2080 r.p.m	80-2080 r.p.m	80-2080 r.p.m
60Hz	120-2640 r.p.m	100-2500 r.p.m	100-2500 r.p.m	100-2500 r.p.m
Swivel angleof headstock (horizontally)	360°	360°	360°	360°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor Power	0.55KW	0.75KW	1.1KW	1.5KW
Voltage/frequency	As customer's requirement	As customer's requirement	As customer's requirement	As customer's requirement
Net weight/gross weight	130kg/190kg	280kg/330kg	283kg/333kg	285kg/335kg
Packing size	620×750×1000mm	1020×820×1160mm	1020×820×1160mm	1020×820×1160mm
Loading amount	48pcs/20'container	28pcs/20'container	28pcs/20'container	28pcs/20'container

Standard accessories:
Tie rob
Wedge
Allench wrenches
Double-end wrench
Drill chuck and arbor
Toolbox with tools
Optional accessories:
CE electrical part and production
Work lamp
Milling chuck
Boring bar
MIlling cutter holder
cooling system
Machine stand with oil tray
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

---
