China′s Most Popular Undercounter Double-Layer Fully Automatic Glassware Washer

Product Description

Product Description

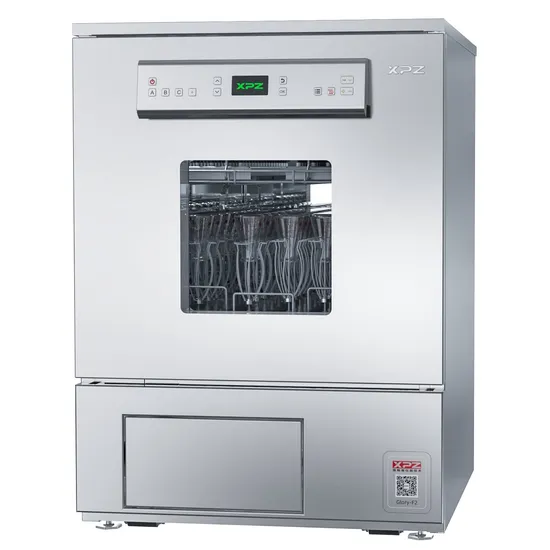

Built-in labware bottle washer with drying function
Glory-2 / F2 laboratory glassware washer,can be installed under the laboratory table-board or separately. It can be connected with tap water & pure water. The standard process is to use tap water & detergent to do mainly wash, then use Pure water rinsing. It will bring you a convenient and fast cleaning effect, when you have drying requirements for cleaned utensils, please choose Glory-F2.
Specification:

Basic Data			Functional Parameter
Model	Glory-2	Glory-F2	Model	Glory-2	Glory-F2
Power Supply	220V/380V	220V/380V	ITL automatic door	Yes	Yes
Material	Inner Chamber 316L/Shell 304	Inner Chamber 316L/Shell 304	ICA Module	Yes	Yes
Total Power	5KW/10KW	7KW/12KW	Peristaltic Pump	2	2
Heating Power	4KW/9KW	4KW/9KW	Condensing Unit	Yes	Yes
Drying Power	N/A	2KW	Custom Program	Yes	Yes
Washing Temp.	50-93ºC	50-93ºC	OLED Screen	Yes	Yes
Washing Chamber Volume	170L	170L	RS232 Printing Interface	Yes	Yes
Cleaning Procedures	35	35	Conductivity Monitoring	Optional	Optional
The Layer Number of Cleaning	2(Petri dish 3 layers)	2(Petri dish 3 layers)	Internet of Things	Optional	Optional
Pump Washing Rate	500L/min	500L/min	Dimension(H*W*D)mm	830×612×750mm	830×612×750mm
Weight	120KG	120KG	Inner cavity size (H*W*D)mm	550*540*550mm	550*540*550mm

Scope of application
Automatic washing machine, used in food, agriculture, pharmaceutical, forestry, environment, agricultural product testing, laboratory animals and other related fields to provide glassware cleaning solutions. Used for cleaning and drying Erlenmeyer flasks, flasks, volumetric flasks, pipettes, injection vials, petri dishes, etc.
Automatic cleaning meaning
1. Can be standardized for cleaning to ensure uniform cleaning results and reduce uncertainties in human operation.
2. Easy to verify and save records for easy traceability management.
3. Reduce staff risk and avoid injury or infection during manual cleaning.
4. Cleaning, disinfection and automatic completion, reducing equipment and labor input, saving costs
High cleanliness
1. Imported high-efficiency circulating pump in Sweden, the cleaning pressure is stable and reliable;
2. According to the principle of fluid mechanics, the cleaning position is designed to ensure the cleanliness of each item;
3. Optimized design of the rotary spray arm of the flat-mouth nozzle to ensure that the spray is 360° without dead angle coverage;
4. Wash the side of the column obliquely to ensure that the inner wall of the vessel is 360° cleaned;
5. Height-adjustable bracket to ensure effective cleaning of different sizes of vessels;
6. Double water temperature control to ensure the entire cleaning water temperature;
7. The detergent can be set and automatically added;
Independent cleaning module, 4 cleaning modules can be placed in each cleaning, such as Injection module for Volumetric flask , Injection module for conical flask
, Injection module for Sampling tube etc. ,Injection module for Pipettes.
, chicken heart bottle cleaning module, round bottom flask cleaning module, Liquid funnel cleaning module, pipette cleaning module, etc., each time you wash different utensils, you can choose different cleaning modules for free combination to achieve comprehensive free combination cleaning
Importance:
1; free independent module
2; The combination is as big as: AAAA / BBBB / CCCC / AABB / AAEE / ABEG, etc.
3; The number of cleaning is more big, modular cleaning uses all the cleaning space.
4; Proof of cleaning ability: injection vials can clean more than 468 positions, 144 positions for 5-50ml volumetric flasks, and 200 positions for pipettes
Operation management
1.Wash Start delay function: The instrument comes with appointment time start & timer start function to improve the customer's work efficiency;
2. OLED module color display, self-illumination, high contrast, no viewing angle limitation
3. level password management, which can meet the use of different management rights;
4. Equipment fault self-diagnosis and sound, text prompts;
5. Cleaning data automatic storage function (optional);
6.USB cleaning data export function (optional);
7. Micro printer data printing function (optional)
Technical Innovation
Spray arm flow rate induction control system
With high-pressure spray cleaning function, that is, spray arm flow rate induction control system, the bottle Laboratory Washer can automatically identify the loaded basket system, and accurately control the speed of the spray arm in the cleaning chamber. If the loading is wrong, the bottle washer detects the error at the beginning of the program and suspends the work. During the cleaning process, the bottle washing machine detects the speed of the spray arm to ensure that the speed is within the set range, so as to achieve a better cleaning effect.
Automatic glassware washer---principle
With tap water and pure water (or softened water) as the working medium, using a specific cleaning agent, driven by the circulation pump, the cleaning liquid is directly washed 360 ° inside and outside the vessel by rotating the spray arm and the spray pipe, so as to peel off, emulsify and decompose the remaining substances on the vessel under the action of mechanical and chemical forces; In addition, the cleaning liquid can be automatically heated, and then the utensils can be hot cleaned and disinfected to achieve a better cleaning effect. If the model with drying function is selected, the sample bottle can also be hot air dried after washing to avoid secondary contamination caused by not being removed in time.
Company Profile
Hangzhou Xipingzhe Instrument Technology Co., LtdXPZ is a leading manufacturer of laboratory glassware washer,located in hangzhou city,zhejiang province,china.XPZ specializes in research,production and trade the automatic glassware washer which is applied to Bio-pharma,Medical health,Quality inspection environment ,food monitoring,and petrochemical field.XPZ is committed to help solve all kinds of cleaning problems.We are the main supplier to Chinese inspection authorities and chemical enterprises,meanwhile XPZ brand has been spread to many other countries,like india ,UK,Russia,South Korea,Uganda,the philippinese etc.,XPZ provides integrated solutions based on customized demand,including product selection ,installation and operate training etc.We will gather more enterprise advantage to provide innovtive products with high quality and excellent service ,to keep our long-term friendship.
Exhibition
Certifications
FAQ
Q1: Why Choose XPZ ?
We are the main supplier to chinese inspection authorities and chemical enterprises.
Our brand has been spread to many other countries,such as India,UK,Russia,Africa and Europe.
We provide integrated solutions based on customized demand,including product selection,installation and operate training.
Q2:What's kind of shipment can customer choose?
Usually ship by sea, by air.
We try our best to meet the transportation requirements of customers.
Q3:How to ensure the product quality and after-sales service?
We have CE, ISO quality certificate and etc.
We have the excellent after-sales service and after sales engineer.
Our products have a warranty period.
Q4:Can we visit your factory online?
We are very supportive.
Q5:What kind of payment can customer choose?
T/T,L/C and etc.

---
