CNC Lathe Manufacturer Tck6340 Tck6350 CNC Lathe Machine Price

Product Description

CNC Lathe Manufacturer TCK6340 TCK6350 CNC Lathe Machine Price

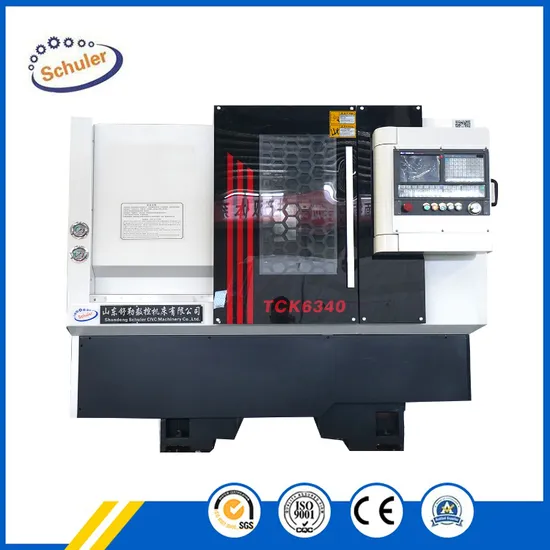

Product Picture:
CNC Lathe Application:
The Small CNC Turning Center Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, military and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
CNC Lathe Features:
1.45 degree slant bed cnc lathe
2.High accuracy Taiwan linear guideways
3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.
5.The first one is suitable for bearing and gear processing .
6.The second type is suitable for high speed and jhigh precision processing.
7.Customers could choose any type of them
8.Screw pre-stretching structure
9.Gang type tool post
10.Optional turret
CNC Lathe Machine Technical Parameters:

Model	TCK6336(S)	TCK6340	TCK6350
Max swing over bed	390mm	400mm	520mm
Swing over cross slide	130mm	140mm	220mm
Max processing length	200/400mm	300mm	410mm
X/Z axis travel	400/300(500)mm	380/350mm	500/500mm
Spindle unit	140/170mm	170mm	200mm
Spindle nose	A2-5	A2-5	A2-6/A2-8
Spindle bore	48/56mm	56mm	66mm
Bar capacity	40/45mm	45mm	55mm
Max spindle speed	4000/3500mm	3500mm	3000mm
Chuck size	6/8''	6/8''	10''
Spindle motor	3.7/5.5kw	5.5kw	7.5/11kw
X/Z axis repeatability	+0.003mm	+0.003mm	+0.003mm
X/Z axis feed motor torque	6/6	6/6	7.5/7.5
X/Z rapid traverse	18/15 18/18	18/18	18/18
Cutting tool shape size	20x20	20x20	25x25
Guide form	45 degree oblique track	45 degree oblique track	45 degree oblique track
Total power capacity	9/11	9/11	14/18
Machine size	2200x2390x1530x1780mm	2300x1500x1750mm	2500x1620x1890mm
Weight	2200/2500kg	2500kg	2900kg

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
CNC Lathe Machine Details:
CNC Lathe Machine Precision Casting Fuselage:
CNC Lathe In the Workshop:
CNC Lathe Package:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co.,Ltd.
Add: Tengzhou City ,Shandong Province ,China
Edwin
Mob: +86-18663288651

---
