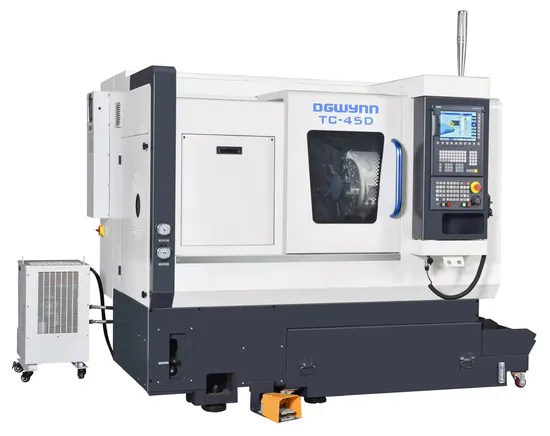

Automatic CNC Lathe Power Knife Holder Control System Tc-45 Turning and Milling Machine Tool

Product Description

Product Description
TC - 45 OWNS HIGH RIGIDITY,HIGH PRECISION FRAME DESIGN.
Our Machine Center is One-piece main body,low gravity 30 degree slant bed provide spindle and turret stable
accuracy.
Through FEM analysis optimize machine structure design, maintain stable rigidity duringnheavy duty cutting,
also guaranty high accuracyand longer tool life.
All machine main body adopt FC30 Mihanna iron casting with stiffener to enhance machine structure, heat
balance design satisfy long time machining requirement. FC30 iron casting also effective reduce vibration and prevent
machine deformation.
X axis and Z axis driven by AC servo motors, provide powerful feed rate and acceleration and deceleration movement precision control. Absolute coordinate encoder instead limited switch, avoid limited switch damage also save time from needless zero point return when machine turn on.
Detailed Photos
Product Parameters
PRODUCT SPECIFICATION

Item	Describe	TC-45A	TC-45D	TC-45M	TC-45MY	Unit
Ability	Max. swing over bed	Ø460	Ø560			mm
	Swing over saddle	Ø99	Ø300			mm
	Max. tuming length	290	280	245	230	mm
	Max. tuming Dia.	Ø450	Ø330	Ø280	Ø300	mm
	Max. bar size	collet: Ø42				mm
		chuck: Ø45
X/Y/Z Stroke	X axis stroke	400	190 (170+20)	190 (170+20)	255 (150+105)	mm
	Z axis stroke	290	320	300	265	mm
	Y axis stroke				70 ( ± 35 )	mm
	Rapid Feed Rate	30	24			m/min
Turret	Turret Driven Method	row knife	Servo knife tower	impetus knife tower	impetus knife tower	SET
	Tool Qty.	7	12	12	12	A
	Milling Spindle Speed			5000		rpm
Spindle	Spindle nose		A2-5
	Spindle through hole Dia.		Ø56			mm
Control System	NC controller	Siemens - 828D				A
	Spindle motor power	15 ( 110Nm / opt: 140Nm )				kw
	Spindle Speed	5000(opt:4000)				rpm
	X/Z Servo Motors	2.29	3.3			kw
	Y Axis Servo Motors				2.29	kw
Dimensions	L × W × H	2300*1710*1900				mm
	Weight	About 2.9	about 3.5			Ton

Type & Scope of Processing


Company Profile
Transtar Machinery Co., Ltd. is located in Dongguan, known as the "Factory of the World". We are a company specializing in the production and sales of machine tools and tools, with products ranging from traditional machine tools and tools to CNC machine tools everything, tailored to the needs of customers. The company has a specialized R & D team, from castings to the body, from the circuit to the system layers of control, so that the company's products are constantly updated, constantly improved, and to date we have nearly thirty years of experience in the industry, can provide customers with the industry's more cutting-edge quality products. Our main types of business include, but are not limited to, surface grinders, CNC grinders, lathes, machining centers, 5-axis machines, mill-turn machines, gantry machines, and related ancillary products. We have a wide range of machine tools with competitive prices and great influence in the industry. We develop global customers with high quality products and the best service, and since the establishment of our company, we have been adhering to the business philosophy of "Professional Quality, Reputation First, and Customers First", and we are constantly pursuing excellence to create greater value for our customers. We are committed to becoming the industry leader and contributing to the development of machinery manufacturing, for which we have been working hard to serve every one of our customers and are committed to realizing the development goal of becoming an important member of the global market, and working hand in hand with our customers to create a better future!
FAQ
Q1:Can we visit your factory before order?A: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick you up at the station or airport if needed .
Q2:What's your main products of your company?A: We specialized in all kinds of machine tools,such as CNC Lathe Machine, Turning and Milling Compound Lathe Spindle Cnc Lathe Machine,Lathe Feeder Machine and so on.Q3:Can you provide customized machines?A: Yes, we can design and manufacture according to your specific requirements.Q4:Do you have professional engineers?A: Yes,we have professional engineers and designers.Q5: Does your company provide professional training?A: Yes, we provide training and teaching or use video teaching.Q6:How can I choose the most suitable machines?A: You can contact our customer service, and please provide your product details and requirements, then we will help you choose the most suitable machine based on your information.Q7:What is your terms of delivery?A: FOBQ8:What is your terms of payment.A:TIT 30% as deposit, and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.Q9:How about your delivery time?A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q10: Do you test all your goods before delivery?A: Yes, we have 100% test before delivery.Q11:Can you provide product samples?A: Yes, we can provide samples according to the drawings, but the customer needs to pay for the cost of the samples.Q12:What industry are your machines used in?A:Automobile parts industry,Electronic Equipment Industry, Home appliance industry, and so on.

---
