Laboratory Food Pet Bottle Mushroom Substrate Canning Sterilizing Autoclave

Product Description

Product Description
1.Indirect heating or indirect cooling,the cooling water doesn't contact with the process water,avoiding secondary pollution of the food,and no need to use water to treat the chemical.High temperature sterilization for a short time.
2.The steam consumption is reduced,and the steam and the sterilized water after atomization are directly mixed in the sterilizer to increase the speed of temperature rise and fall.
3.A small amount of process water is quickly circulated to quickly reach the predetermined sterilization temperature.
4.Low noise,creating a quiet,comfortable working environment.
5.Perfect pressure control,the pressure of the entire production process is constantly adjusted to adapt to changes in the
6.internal pressure of the product packaging,especially for products containing gas packaging.

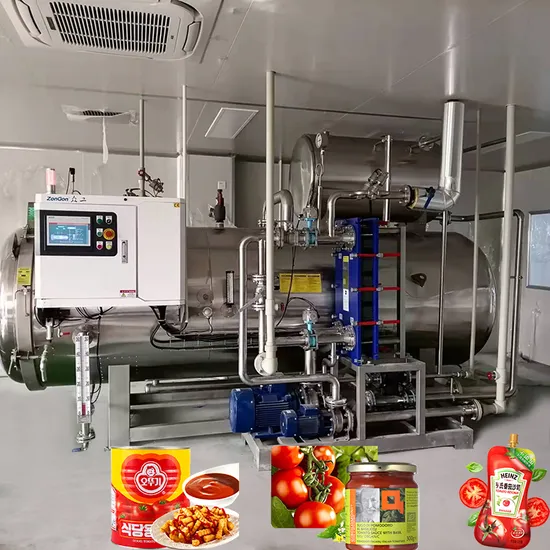

Detailed Photos
EQUIPMENT CHARACTERISTICS
A. This retort sterilizer is equipped with an electric heating system on the basis of the traditional spray sterilizer to provide heat for the sterilization process.
This machine eliminates the worry of buying a boiler, so that users can worry and rest assured. Especially suitable for users with small output.
B. The heat source can be supplied by electricity or steam. When the electricity is used, it can be preset to the required temperature. It can be automatically controlled by the electric contact pressure gauge. When it is lower than a certain temperature, it can be automatically heated, thus ensuring the temperature during sterilization. accuracy. When steam is used, it can be directly heated and sterilized by a boiler.
C. The computer program automatically controls the balance of temperature and pressure in the pot to rise and fall. It is essential for nitrogen-containing packaging, glass bottles and plastic bottles to ensure that it is not deformed or broken, so that each product can be completely eliminated. bacteria.
D. Because the circulating water in the pot is less, and the high-efficiency heat exchanger is used, the temperature required for sterilization is reached within a few minutes. According to different products, multi-stage temperature sterilization and multi-stage cooling are set to ensure the taste and color of the food. Nutritional ingredients are not destroyed.
Product Parameters

Item	900	1000		1200	1400	1500	1600
kettle length(mm)	1800	2200	2400	3600	4000	6000	7250
Total capacity(m³)	1.35	2.06	2.16	4.6	6.89	11.5	15.5
Body thickness(mm)	4	4	4	5	6	6	6
Installed power(KW)	1.5	3	3	5.5	11	15	18.5
Design pressure(Mpa)	0.35	0.35	0.35	0.35	0.35	0.35	0.35
Design temperature(°C)	147	147	147	147	147	147	147

Our Advantages
1.For high temperature sterilization of fruits, vegetables, meat, fish, convenience foods, etc.
2.Scientific experiments show that the best sterilization temperature of the tide type brine food is 121 DEG, the best sterilization time is 12min, which can not only ensure the good sterilization effect, but also keep the flavor of the brine.
3.Mainly applicable to canned food (such as meat, fish, eggs, vegetables etc.), protein beverage (milk, soy milk, coconut milk, peanut milk, walnut milk, almond milk etc.), hard cans (tin cans, glass bottles, cans etc.) and various kinds of soft packaged food.
Certifications
Our company has a special setup manufacturing license of the People's Republic of China. This certificate can only be obtained by manufacturers with special professional pressure. The requirements for applying for this certificate are very high. We are committed to providing our guests with professional, safe and cost-effective sterilization retort equipment.

Company Profile
ZONGON factory was established in 2002, and we are committed to engaging in food fully automatic new atmosphere retorts, automatic universal cooking pot, new gas modulation nitrogen machine, new modified atmosphere packaging machines, new modified atmosphere food technology, conventional high-temperature sterilization pot sandwich pot research, design, manufacturing, modern services in one company, and our company has a national pressure vessel manufacturing license qualification(Certificate Number: TS2237350-2013), and successfully passed the food safety regulator's Shandong Province, the KYL type retorts Open the door security chain device identification(ID: SY-WT-2010-0019), and the products have passed the ISO9001 international management system certification, and our company has independent import and export operation rights.
After Sales Service
FAQ
WE ALWAYS EXPLOR ALL THE POSSIBILITIES TO HELP CUSTOMERS TO SOLVE PROBLEMS AND UPGRADE THEIR PRODUCTS QUALITY.

1. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1) Phone call guidance to confirm the problem.
2) We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
2.What if the PLC is suddenly broken down?
We use German Brand PLC, it is quite stable brand. If really broken down, what we usually do is:
1) We suggest customer to buy one more for storage. The computer we will also upload the
program.
2) Once it is broken down, then take replace the new one, the broken one, send back to us, we re-do the system, and send it back to you again.
3.What is the difference between retort and autoclaving?
Both words refer to the process of sterilizing a given item. This item could be medical instruments, a sealed container of food, or anything else.So there is no difference between these two terms. They are two different ways to say the same thing.
4.Is retort machine advisable to replace autoclave in microbiology laboratory?
A retort is an autoclave. The difference here is that our retorts can perform various processes i.e. water spray, water immersion and steam-air in addition to saturated steam with or without horizontal or rotational agitation.

---
