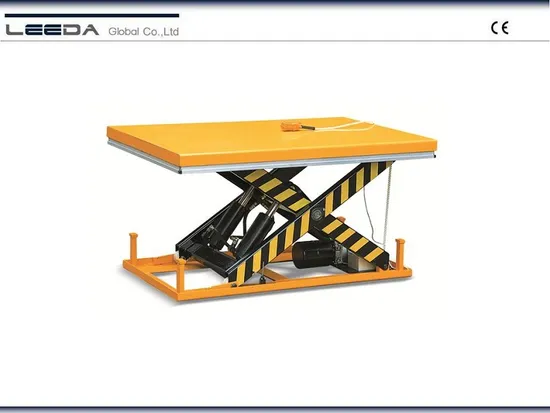

4000kg Stationary Electric Single Scissor Lift Table with Positioning in Different Heights and 1200X1700mm Platform Size Hl-W4001

Product Description

Stationary Lift Table with Positioning in Different Heights (HL-W SERIES)
Heavy Duty Design
HL-W series Lift tables meet EN norm and ANSI/ASME safety standards.
These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the Lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and Lift table installation. Bitmap
High quality AC power packs are made in Europe

Model	Capacity	Lowered Height	Raised Height	Platform Size	Base Frame Size	Lift Time	Power Pack	Net Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(second)		(kg)
HL-W1001	1000	205	990	820× 1300	640× 1240	20-25	380V/50HZ, AC 1.1kw	160
HL-W1002	1000	205	990	1000× 1600	640× 1240	20-25		186
HL-W1003	1000	240	1300	850× 1700	640× 1580	30-35		200
HL-W1004	1000	240	1300	1000× 1700	640× 1580	30-35		210
HL-W1005	1000	240	1300	850× 2000	640× 1580	30-35		212
HL-W1006	1000	240	1300	1000× 2000	640× 1580	30-35		223
HL-W1007	1000	240	1300	1700× 1500	1580× 1320	30-40	380V/50HZ, AC 1.1kw	365
HL-W1008	1000	240	1300	2000× 1700	1580× 1320	30-40		430
HL-W2001	2000	230	1000	850× 1300	785× 1220	20-25	380V/50HZ, AC 2.2kw	235
HL-W2002	2000	230	1000	1000× 1600	785× 1220	20-25		268
HL-W2003	2000	250	1300	850× 1700	785× 1600	25-35		289
HL-W2004	2000	250	1300	1000× 1700	785× 1600	25-35		300
HL-W2005	2000	250	1300	850× 2000	785× 1600	25-35		300
HL-W2006	2000	250	1300	1000× 2000	785× 1600	25-35	380V/50HZ, AC 1.5kw	315
HL-W2007	2000	250	1400	1700× 1500	1600× 1435	25-35	380V/50HZ, AC 2.2kw	415
HL-W2008	2000	250	1400	2000× 1800	1600× 1435	25-35		500
HL-W4001	4000	240	1050	1200× 1700	900× 1600	30-40		375
HL-W4002	4000	240	1050	1200× 2000	900× 1600	30-40		405
HL-W4003	4000	300	1400	1000× 2000	900× 2000	45-50		470
HL-W4004	4000	300	1400	1200× 2000	900× 2000	45-50		490
HL-W4005	4000	300	1400	1000× 2200	900× 2000	45-50		480
HL-W4006	4000	300	1400	1200× 2200	900× 2000	45-50	380V/50HZ, AC 2.2kw	505
HL-W4007	4000	350	1300	1700× 1500	1620× 1400	35-45	380V/50HZ, AC 2.2kw	570
HL-W4008	4000	350	1300	2200× 1800	1620× 1400	35-45		655

---
