Product Description

Product Description
Description of cemented Tungsten carbide strip: Cemented Tungsten carbide is a sintered metallurgical product of powder form. It is manufactured in vacuum or Hydrogen reduction furnace with refractory Tungsten material (WC) micron powder as the main ingredient and Cobalt (Co), Nickel (Ni) or Molybdenum (Mo) as the binder.
Cemented Tungsten carbide has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness). It can be used to cut cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc., and make drilling tools, mining tools, measuring gauges, wear parts, cylinder liners, precision bearings, nozzles and metal molds, etc..
Stanford Materials provides various machined cemented Tungsten carbide products of different forms such as rod, strip, mill and drill, cutter/tip, nozzle, dies and complex parts, etc..
We supply three types of cemented Tungsten carbide strips: strip with angle, round strip and cemented Tungsten carbide strip.
Product Parameters
Specifications of cemented Tungsten carbide strip:

Size (T x W x L, mm)	Thickness Tolerance (mm)	Width Tolerance (mm)	Length Tolerance (mm)
1 x (2 ~ 5) x L	Thickness = 7.0, Tolerance: +0.2/+0.5; Thickness > 7, Tolerance: +0.2/+0.7	Width = 30, Tolerance: +0.2/+0.6; Width> 30, Tolerance: +0.2/+0.8	Length < 100, Tolerance: 0/+1.0; 100≤ Length < 200, Tolerance: 0/+2.0; Length = 200, Tolerance: 0/+5.0
1.5 x (2 ~ 10) x L
2.0 x (3.5 ~ 15) x L
2.5 x (2.5 ~ 20) x L
3.0 x (3.0 ~ 20) x L
3.5 x (3.5 ~ 25) x L
4.0 x (4.0 ~ 30) x L
5.0 x (4.0 ~ 40) x L
6.0 x (5.0 ~ 40) x L
(7 ~ 20) x (7 ~ 40) x L

Specifications of Cemented Tungsten carbide strip with angle:

Size (T x W x L, mm)	Thickness Tolerance (mm)	Width Tolerance (mm)	Length Tolerance (mm)	Angle Tolerance
(1 ~ 2) x (2.5 ~ 6.0) x L ~ (0 ~ 35)	0/+0.2, 0/+0.5	0/+0.2, 0/+0.6	L< 100, Tolerance: 0/+1.0; L = 100, Tolerance: 0/+2.0; L = 300, Tolerance: +0.5	+/-1

carbide strips has the characteristics of high red hardness, good weldability and high wear resistance. It is mainly used in the production and processing of solid wood, density board, gray cast iron, non-ferrous metal materials, chilled cast iron, hardened steel.
Longest size available is around 1000mm
Grade lists of carbide strips :

Grade	Density (g/cm3)	Hardness(HRA)	TRS(MPa)
YG6	14.95	90.5	1900
YG6X	14.95	91.5	1800
YG8	14.8	89.5	2200
YL10.2	14.5	91.8	2400
YG15	14	87.5	2800
VA95	13.1	84	2900

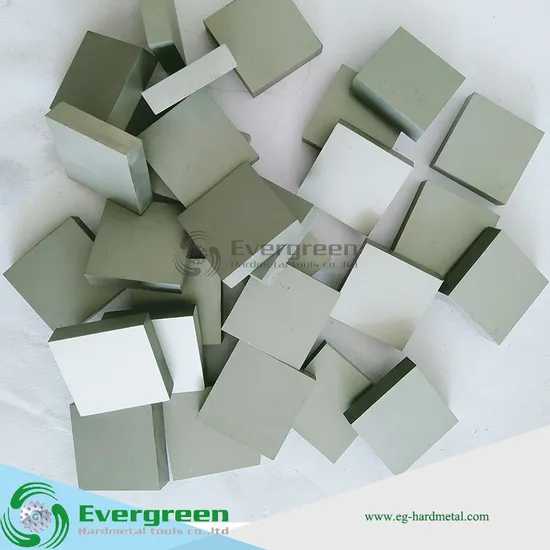

Detailed Photos

Company Profile
About us
Zhuzhou Evergreen hardmetal Tools Co., Ltd., is a professional manufactuer of cemented carbide products in China, we have been in this line for more than 25 years. The tools made from us are with long life time and stable machining performance. If there is any interest please feel free to let us know, free samples are available.

Packaging & Shipping
Our Advantages
1. 100% raw material.
2. Size standard as per your requirements
3. Professional suggestion on products
4. Feedback within 24 hours
5. Fully adopted in advance technology and equipment.
6. Professional manufacture for tungsten carbide items with 20 years experience.
7. Quality Control System and strict inspection.
Any inquiry,please don't hesitate contact me.
