Basic Info.
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Beach
Color: Grey
Wireless Remote Control: Optional
Rope: Steel Wire Rope
Synthetic Rope: Optional
Transport Package
Export Carton Box
Specification
CE, MD approved
Production Capacity
30, 000PCS/Month
Product Description
Motor: High performance motor provides fast line speed.
Gear Box: low noise, steady work.
Brake: Independent and automatic, safety and reliability.
Waterproof: IP66
| Product info. | Points |

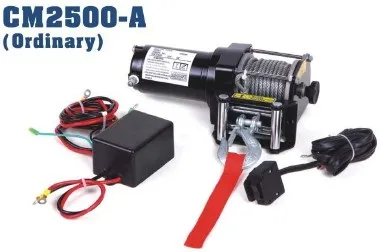

| Model | CM2500-A |
| Unit Price(USD) | $34.00 |
| Rated line pull: | 2500lbs(1136kgs) Single-line |
| Gear ratio: | 153:1 |
| Gear train: | differential planetary |
| Clutch(freespooling) | pull and turn |
| Motor: | Permanent magnet DC 12V motor with 1.1hp output |
| Control | handlebar mounted Mini-rocker switch |
| Overall Dimension | 300(L)x110(W)x105(H)mm |
| Drum diameter/length | 1.25"/2.9" |
| Fairlead | Roller included |
| Wire rope | 3/16"*40'(4.8mm*12.2m) |
| Recommended battery | 12Amp/hour minimum for winching |
| NW/GW | 14kgs/16kgs(2pcs in one carton) |
| Meas | 350*300*320mm(2pcs in one carton) |
Pull,Speed,Amperes,Volts(First Layer)
| Line Pull(lbs./kgs) | Line Speed FPM(m/min) | Motor(Amps) |
| 0 | 12.5ft(3.8m) | 10 |
| 1000(454) | 7.8ft(2.38m) | 60 |
| 2000(907) | 4.6ft(1.4m) | 100 |
| 2500(1136) | 2.6ft(0.8m) | 120 |
| Layer | Rated Line Pul(lbs./kgs) | Total Rope On Drum(ft/m) |
| 1 | 2500(1136) | 5.6(1.7) |
| 2 | 1985(900) | 12.4(3.8) |
| 3 | 1650(748) | 21.0(6.4) |
| 4 | 1410(639) | 31.0(9.5) |
| 5 | 1230(558) | 40.0(12.2) |
WHY YOU MUST CHOOSE US:
1. We are a professional winch factory with many years of experiences.
2. We have advanced facilities for production, many accessories of the winch are made by ourselves with good quality.So good quality but reasonable price on the market.
3. We are a honest manufacture with many certificates like CE certificates which can assure the quality of our products.
We have a lot patent certificates which show our strong research productivity,making winches styles advance with the times,guaranteeing your quick development and sales in your market.
5. We have strong engineering team that can give best solution for your projects,
6. We can OEM for your products.
We look forward to cooperate with you in near future!
>>
