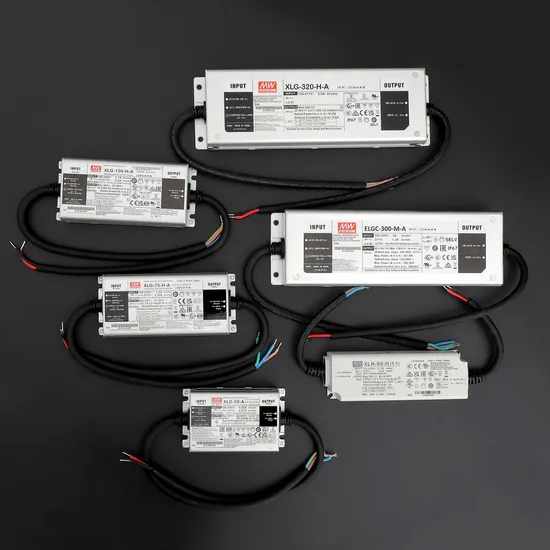

Stock Meanwell IP67 Xlg Series 20W 50W 75W 100W 150W 200W 240W Waterproof 12V 24V 48V Constant Power Outdoor Lighting LED Driver LED Power Supply

Product Description

Product DescriptionFeatures
·Constant power mode output (XLG-25~320)
·Constant current mode(XLG-20 only)
·Full power at 70~100% current
.Universal AC input: 100~305VAC
·Metal case with IP67
·Built-in active PFC function
·Class 2 power unit (XLG-20~100)
·Surge protection with 6KV/4KV (10KV/6KV available)
·Protections: Short Circuit / Over Current / Over Voltage / Over Temp.
·5 years warranty

Model No.	12	24	L	M	H	V	Dimension (mm)
Output
XLG-20-			32.4~54V, 0.35A	25.2~42V, 0.5A	18~30V, 0.7A		95x63x30
XLG-25-					0.25~1.05A		105x63x30
XLG-50-					22~54V, 0.53~2.1A		105x63x30
XLG-75-	8.4~12V, 5A	16.8~24V, 3.1A	53~107V, 0.35~1.05A		27~56V, 0.65~2.1A		140x63x32
XLG-100-	8.4~12V, 4~8A	16.8~24V, 2~4A	71~142V, 0.35~1.05A		27~56V, 0.875~2.78A		140x63x32
XLG-150-	8.4~12V, 6.5~12.5A	16.8~24V, 3.2~6.25A	120~214V, 0.35~1.05A	60~107V, 0.7~2.1A	27~56V, 1.4~4.17A		180x63x35.5
XLG-200-	8.4~12V, 8~16A	16.8~24V, 4.15~8.3A	142~285V, 0.35~1.05A		27~56V, 1.75~5.55A		199x63x35.5
XLG-240-			178~342V, 0.35~1.05A	90~171V, 0.7~2.1A	27~56V, 2.4~6.66A		219x63x35.5
XLG-320-			150~300V, 0.5~1.4A	74~148V, 2.1~2.8A	30~56V, 5.57~7.42A	24V/13A 12V/18A	246x77x39.5

Product Advantages1. Compact Size
The miniaturized design is a hallmark of the XLG series, featuring a double-sided PCB layout. This unique setup minimizes power supply size while enhancing product reliability. Its compact framework is tailored to seamlessly integrate with diverse luminaire designs, offering users unrivaled convenience.
2. Constant Power Mode Design
The XLG series boasts a comprehensive wattage spectrum from 20W to 320W, enabling expansive luminaire designs within the same product family. Its constant power architecture offers a vast current range-adjustable from 70% to 100% of full load operation-streamlining customer modifications and mitigating inventory challenges.
3. Dimming Circuit with Isolation Design
The XLG series adheres to the latest safety standards with isolated output and dimming circuits, ensuring ultimate user safety. Complete international certifications and advanced 3-in-1 and DALI-2 dimming functions empower customers to market and sell their luminaires globally with ease and confidence.
ApplicationHistorically, UV lamps dominated ink curing in the printing realm. However, UV LEDs now lead in curing applications by significantly cutting power consumption and prolonging lamp life to over 50,000 hours. In synergy with MEAN WELL's XLG series LED driver, UV LEDs offer adaptable brightness to match operational distances, underscoring their superiority in the curing process.
Model in Use
XLG-200
Traditional livestock and poultry lighting methods, utilizing ballasts and low-frequency fluorescent tubes, often suffer from flickering, adversely affecting animal well-being and productivity. Transitioning to LED lighting with the XLG series LED driver delivers constant power and high-frequency switching, eliminating flicker and fostering a stable growth environment, ultimately enhancing livestock and poultry yields.
Model in Use
XLG-320
LED lighting stands out against conventional solutions by dramatically lowering power consumption and radiant heat, while optimizing temperature and brightness control for greenhouse cultivation. By adjusting color temperature to suit plant growth phases, the XLG series supports varied horticultural lighting needs, boosting crop yields and economic returns.
Model in Use
XLG-240
