6-18 M Fully Self-Propelled Portable Electric Scaffolding Small Mobile Electrical Platform Table Hydraulic Scissor Lift

Product Description

Products Description
Welcome to HIGHTOP Group!
OEM customized,factory direct,Competitive price
HIGHTOP Products,Your Good Assistant in Life!

5 -16 meter scissor lift available: lead-acid battery/diesel forklift
crawler /wheel type scissor lift
Hydraulic Jack Lift Table for Working at Height
We ,HIGHTOP ,scissor lift manufactuer , are located in Shandong China.Our lifting platform and forklift all CE approved, Our scissor lift models range from 6-16 meters . You can choose the suitable model you need. We support various customization as machine color, configuration,design,etc.
Looking forward to cooperating with you.
Please Send inquiry directly.
More information, services and suitable price.
Product Paramenters

Model	HTLP3-6
Safe working load	320 KG
Safe working load of extension	113 KG
Max.number of people	2
Max.working height(A)	8 m
Max.platform height(B)	6 m
Overall length(C)	1900 mm
Overall width(D)	800 mm
Overall height(fence not folded)	2050 mm
Overall height(fence folding)(E)	1750 mm
Working platform size(L*W)(F)	1700mm*750mm
Platform extension size(G)	0.5 m
Min.ground clearance(retracted)	0.1 m
Min. Ground clearance(lifting)	0.019 m
Wheelbase	1380 mm
Min.turning radius(inner wheel)	0
Min.turning radius(outer wheel)	1.7 m
Lifting motor/drive motor	24 v/4.0 kw
Machine travel speed(stowed)	3.5 km/h
Machine travel speed(lifting state)	0.8 km/h
Up/down speed	80/90 sec
Battery	6 V/230 ah
Charger	24 V/25 A
Max.Climb capacity	25 degree
Max. allowable working angle(indoor/outdoor)	2° /3°
Type	305*107
Weight of whole machine	1200 kg

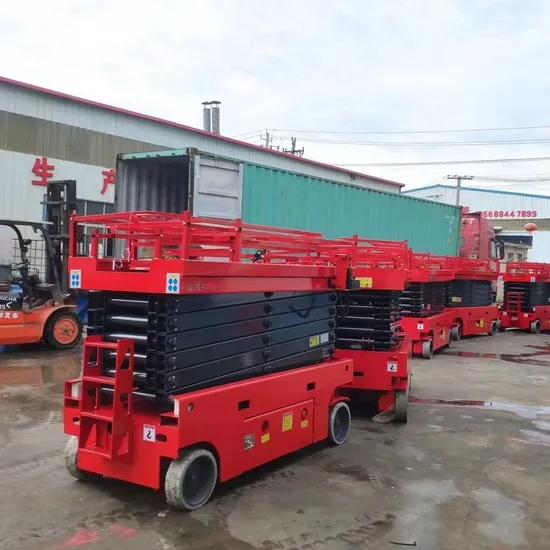

Product Display
Product packaging
Any Question, please send inquiry, we 24 house online, will reply promptly.
FAQ
Q:Whether are you a factory?
A:YEAH, We are factory, located in Jining, Shandong, Province
Q:As First time shopping online from China, how about the operation?
A:No worry, we have over 20 years export experiences to all over the world, we have the professional support, we would introduce all clear for you happy shopping.Order-production-shipment-delivery
Q:How about the after services?
A:our products one year warranty,We have professional Technical and after-services Team, when we receive the clients issue feedbacks, we would deal the issue and offer the professional feedbacks at first time and to check the issue reason and offer the right support or Free spare parts;
Q:How to begin the shopping?
A:Please send your enquiry or message here, then we will make the final offer and invoice for you final checking then finish the shopping.
Q:How about the payment term?How to pay?
A:We support 100% In advance; or deposit in advance,balance before the shipment;
We accept TT(Wire transfer), online transfer, Credit card, VISA, Paypal, apple pay,..L/C At sight....
