DR5G17 support 802.11ac/ax, mmcx connector

Product Details

Product Description

Product Description
/products_show.php?id=50&lm=4
email：sales_1@wallystech.com
1. Feature
* 17dBi Dual Polarized Micro strip Antenna Array
* 5GHz of frequency
* MMCX connector
* Support 802.3 11AX/AC/AN
* RoHS compliance
2. Application
* 5GHz Wireless Communication
* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card
3. Description

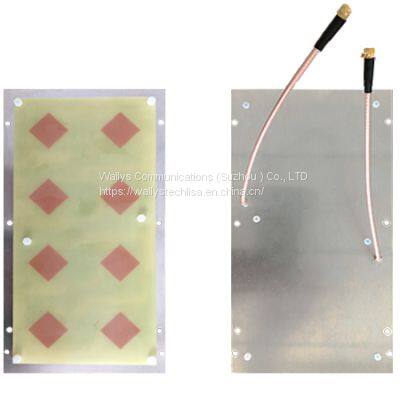

This antenna array is designed for 5GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.

General Data

Product Name	Dual Polarized Micro strip Antenna Array
Part No.	DR5G17_A	DR5G17_H
Frequency	5.1GHz-5.9GHz	5.1GHz-5.9GHz
V.S.W.R		Gain (dBi)	17dbi	18dbi
Polarization	Vertical & horizontal	Vertical & horizontal
Isolation	>40db	>40db
Storage Temp	-20°C~70°C	-20°C~70°C
Operating Temperature	-20°C~60°C	-20°C~60°C
Antenna Type	Antenna Array	Antenna Array
Dimension	200*105mm	200*105mm
Weight

---
