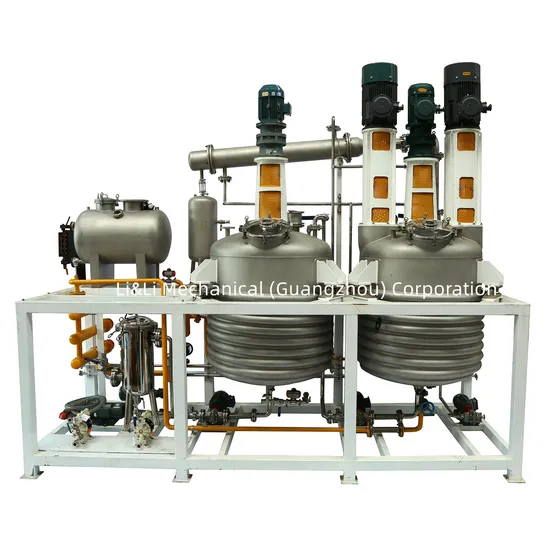

304 Stainless Steel Reactor for Printing Ink production Equipment

Product Description

reactor tank
reactor kettle
stainless steel tank
mixing tank
1.More Details
Reactor is widely used in industries such as petroleum, chemical industry, paint & printing ink, pharmacy, food etc.
Reactor is used as pressure container for vulcanization, nitration, hydrogenation, alkylation, polymerization, consendation processing such as reaction kettle, polymerization kettle, reator, decomposition vessels etc...
It normally adopts carbon steel (or mild steel), stainless steel (SUS304, SUS321, SUS316L), as well as other compound materials.
The reactor can be divided into Reactor with open flat cover, Reactor with open butt welded flange and closed Reactor. Each kind has its own wide application range and merits.
Reactor consists of components such as body, cover, jacket, agitator, driving device, shaft sealing device, support etc...Various seals (packing seal, mechanical seal, magnetic seal), heating&cooling methods (jacket or limpet coil) and mixing types are optional according to different requirements of mixing processing.
Broadly understood reactor, i.e. there is a physical or chemical reaction vessel of stainless steel.Stirring allows two or more different materials dispersed among each other to each other, so as to achieve uniform mixing; also can accelerate heat and mass transfer processes.In industrial production, most of the stirring operation is mechanical stirring. Mixing equipment consists of a stirring device, shaft seals and mixing tanks three major components.Stainless steel reactor is widely used in petroleum, chemical, rubber, pesticides, dyes, medicines, food and other production-oriented user andResearch projects of various scientific experiments, for complete hydrolysis, neutralization, crystallization, distillation, evaporation, storage,alkylation,Polymerization, condensation, heating container mixed, heated reaction the process.We can give you affordable stirred tank reactor.All products have to go through five checks in the whole process.We believe that the quality is the soul of an enterprise.
2.Technical parameter

Model	Capacity	Electric power(KW)	Jacket capacity	Diameter inner pot φ(mm)	Outside the pot diameter R(mm)	Total power(kw)	Stirring speed(r/min)
FE50	50L	3χ2	95	400	600	1.1	50-80
FE100	100L	6×2	120	500	700	1.1-1.5	50-80
FE200	200L	6×3	200	600	800	1.1-2.2	50-80
FE300	300L	6×3	250	700	900	1.5-3	50-80
FE500	500L	9×3	290	900	1100	2.2-4	50-80
FE1000	1000L	9×4	560	1200	1400	3-5.5	50-80
FE2000	2000L	12×4	750	1300	1500	5.5-7.5	50-80
FE3000	3000L	15×5	1015	1500	1700	5.5-11	50-80
FE4000	4000L	15×5	1226	1600	1800	11-15	50-80

FE5000

5000L

18×5

1400

1800

2000

11-15

50-80

3.More Products
4.About our company
Li&Li Mechanical (Guangzhou) Corporation is a professional and experienced corporation that mainly occupied in design, manufacture, installation and debugging of coating, chemicals, cleaning good, pharmacy, new energy,Oil&Gas engineering
daily use, food, etc. equipment. Enterprise strictly execute the ISO9001 standard management, It has obtained 33 national patents for inventions and practical new types, and has obtained the D1.D2 pressure vessel manufacturing and pressure pipeline installation qualification issued by the National Quality Inspection Bureau. Our products include: all kinds of Reactor, high-speed dispersers, mixing tanks, condensers(heat exchanger), recycling towers, weighing control systems and other complete sets of automation control equipment, at the same time, customize all kinds of special-shaped equipment for customers.
5.Our Patents
6.Exhibitions
7.FAQ
Q: Can you give us a quotation right now?
A: Because each of our products are different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
Q: Can you give us your price list?
A: Sorry, we don't have any. Our products are all manufactured according to customers' requirements. Each of the equipment are different and the price is different.
Q: What is your MOQ?
A: 1 piece/set.

Q: Do you accept a special order?
A: Yes, we do.
We can manufacture all kinds of chemical equipments according to your technical drawings.(Before you give them to us, will sign the contract and confidentiality agreement with you. You don't need to worry about that.)
Or we can make a design for you according to your requirements. What we supply is not only product, but also solution and design.
Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design. And if you make the product in our factory, the design will be free. If not, design fees will be charged accordingly.
Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.

Q: Where is the nearest port?
A: HUANGPU Port.

---
