Henan Shuai Gong Dump Truck Muck Truck Electric PVC Tarpaulin System Manufacturer

Product Description

Application areasWide range of applications: Mostly used in automatic closing systems for truck transport coverings, spray booth partitions, chemical pools, sewage sedimentation tank coverings, sand and gravel fields, mining fields, cement plants, coal mines, garbage pools and other environments.

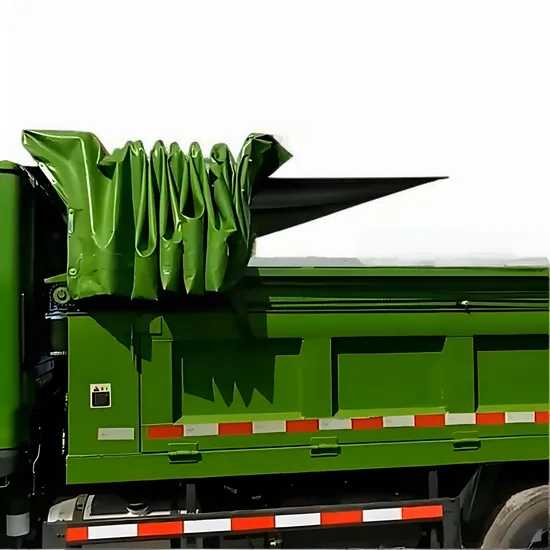

Product DescriptionElectric dump truck tarp systems are an essential component of any dump truck, helping to keep the load secure and protected from the elements during transportation.
It allows the tarpaulin to automatically open and close.One-click automatic opening and closing, convenient and fast, using high-strength PVC tarpaulin that is waterproof, wear-resistant, anti-aging, dust-proof, and durable.Product Parameters

Electric retractable tent fabric Configuration list
Suitable for carriage length 6 meters
name	Specification	unit	Unit dosage	Remark
tarpaulin motor	24V 900W	tower	1
controller	24V	indivual	1	2 remote controls
watch box		indivual	1
Track - round steel	φ20mm	meter	12
chain	10A	meter	24
pulley		indivual	16
Active pulley		indivual	2
awning pole		root	10	custom made
waterproof tarpaulin	650g/m²	piece	1	custom made
Tarpaulin reinforcement belt	60*3mm	root	2	custom made
Reducer plywood	left	indivual	1
Reducer plywood	right	indivual	1
Motor base		indivual	1
transmission shaft	φ35mm	root	1	custom made
Drive shaft base	30mm	indivual	4
chain tensioner	10A	set	2
tail flip		set	2
Tension spring	23R*100H	indivual	2
chain link		indivual	4
Flat pad	20*50*5	indivual	10
Ties		Bundle	1
tarpaulin sheeting	85mm	indivual	36
key	8*80	indivual	1
bolt	8*25	indivual	40
chain link	10A	indivual	4
bolt	12*40	indivual	8
Flat pad	12*25*1.5mm	indivual	8
spring pad	12#	indivual	8
nut	M20	indivual	4
nut	M24	indivual	2
pin	20*35	indivual	2
key	8*25	indivual	1
U-shaped screw	8φ	indivual	4
circlip-outside	25	indivual	6
chain support wheel		indivual	4	Nylon tug
pin		indivual	2
nut	M8	indivual	30
nut	M12	indivual	8
spring pad	8#	indivual	8
Flat pad	8	indivual	8
carton		indivual	1

Manual retractable tarpaulin Configuration list
Suitable for carriage length 6 meters
name	Specification	unit	Unit dosage	Remark
hand crank device	Assembly	set	1
Track - round steel	φ20mm	meter	12
chain	10A	meter	24
pulley		indivual	16
Active pulley		indivual	2
awning pole		root	10	custom made
waterproof tarpaulin	650g/m²	piece	1	custom made
tarpaulin reinforcement belt	60*3mm	root	2	custom made
Reducer plywood	left	indivual	1
Reducer plywood	right	indivual	1
Motor base		indivual	1
transmission shaft	φ35mm	root	1	custom made
Drive shaft base	30mm	indivual	4
chain tensioner	10A	set	2
tail flip		set	2
Tension spring	23R*100H	indivual	2
Round steel fixed channel steel		indivual	4
Flat pad	20*50*5	indivual	10
Ties		Bundle	1
tarpaulin sheeting	85mm	indivual	36
key	8*80	indivual	1
bolt	8*25	indivual	40
chain link	10A	indivual	4
bolt	12*40	indivual	8
Flat pad	12*25*1.5mm	indivual	8
spring pad	12#	indivual	8
nut	M20	indivual	4
nut	M24	indivual	2
pin	20*35	indivual	2
key	8*25	indivual	1
U-shaped screw	8φ	indivual	4
circlip-outside	25	indivual	6
This person Chen Liping-outside		indivual	4	Nylon tug
pin		indivual	2
nut	M8	indivual	30
nut	M12	indivual	8
spring pad	8#	indivual	8
Flat pad	8	indivual	8
flat pad		indivual	1

Packaging and transportationCarton or wooden box
For small order our production time usually taking about 7-10 working days, and the express timetaking about 6-8 working days. For big order it depend on your quantities. Welcome to click here to send your inquiry.
Company ProfileHenan Shuaigong Machinery Equipment Co.,The company is located in Xuchang City, Henan Province, China, with an advantageous geographical location and convenient transportation.
The company has 3 large-scale laser cutting machines, 2 CNC bending machines, 3 tarpaulin high-frequency hot melt machines, and 2 laser welding machines.
It is a manufacturing enterprise with strong production and processing capabilities. It supports customized products, rapid response, and fast production cycle, and has received unanimous praise from customers at home and abroad.
Ltd. is committed to the R&D and manufacturing of high-tech products, working with leading original equipment manufacturers (OEMs) and professional accessories manufacturers to jointly create advanced solutions.
We are particularly proud of our latest innovation in the automatic sealing system for muck trucks, which is widely recognized for its environmental friendliness and anti-smog capabilities.
Our goal is to provide high-quality urban muck trucks equipped with fully intelligent, environmentally friendly sealing systems.
Our state-of-the-art closed systems help create a cleaner, more sustainable future, earning industry acclaim. Henan Shuaigong Machinery Equipment Co., Ltd. prides itself on its strong professional service capabilities and unwavering commitment to providing corporate value that exceeds expectations.
Cooperation caseWe have long-term cooperation with many foreign truck companiesOur AdvantagesOur company has rich experience, excellent technical team, sophisticated production equipment and the spirit of pursuing excellence, operating with integrity, customized services, competitive prices, and the spirit of professional service in the export process.Qualifications and HonorsFAQ:
1. Do you offer custom service?
A: Yes, we can provide customized sizes and colors.
2. What is your terms of delivery?
A: FOB, CIF.
3. How about your delivery time?
A: The specific delivery time depends on the goods and the quantity of your order.
4 : Can we visit your company?
A5 : Yes, for sure, you are welcome to visit our company.
6. What is your sample policy?
A: We can supply the sample if we have ready fabric in stock, but the customers have to pay the sample cost and the courier cost.
7. Do you test all your goods before delivery?
A: Yes, we have 100% test before deliver.
Real scene of the company:
After-sales issues:
If you have any questions about the product, you can send us your questions online and our staff will reply to you as soon as possible.

---
