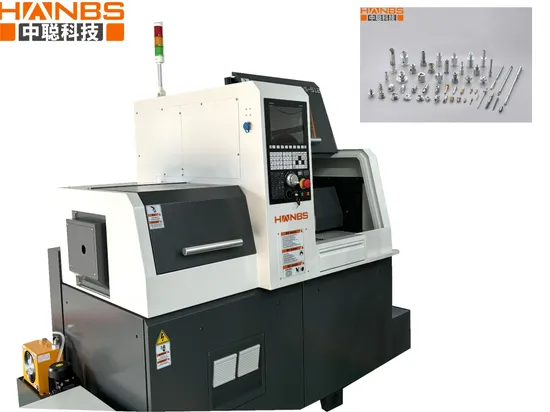

Hanbs Swiss Type Machining CNC Lathe Machine with Turning, Milling, Drilling and Side Face Milling Located in Gongguan

Product Description

Hanbs Swiss Type Machining CNC Lathe Machine with turning,milling,drilling and side face milling located in Gongguan
Some pictures about HANBS
Some pictures about delivery
Foreign customers visit the company
Exhibition photos:
Cast iron display
Some photos about optical machine display:
Some samples display:
HS-512 Technical Parameters
Maximum processing diameter ∅12mm
Maximum processing length(2.5d in the mode without guide bush 60mm
Axial maximum drilling diameter Φ5mm
Axial maximum tapping size M5
Maximum spindle speed(for short-term use only) 10000rpm
Radial maximum drilling diameter Φ5mm
Radial maximum tapping M4
The maximum clamping diameter of the back spindle Φ12mm
The maximum workpiece extension of the back spindle 30mm
The maximum drilling diameter of the back spindle Φ5mm
The maximum tapping diameter of the back spindle M5
The maximum speed of the back spindle(only for short-term only) 12000rpm
The maximum take-out length of the workpiece 40mm
Side powered tool unit 3
Knife row(12*120*5+6*120*1) 5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back) 13
The maximum number of tools installed as standard 21
Z1,Z2,X2,Y Axis fast forward speed 24m/min
X1 Axis fast forward speed 18m/min
Spindle center height 1000mm
Input power 7KW
Weight 1500kg
Dimensions(WXDXH) 1950*1100*1700mm
Product Uses
The following are some specific application scenarios of CNC Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.Welcome to visit.
Q2. How can I place order and get more details about the machine ?
A: You can contact us by email or on line and tell me which details you want to know I will send you the processing vedio and photos.

Q3. About the price can you give the favourable or best price?
A. We have different series machine,and we will recomand you the suitable machine according to your products.Our aims is to become long-term cooperation and friends so we will give you the favourable price for you.
Q4.Can you provide some certificate?
A. According to different country,we can provide different certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is 46 mm.Mini processing daimeter is 3mm.And you can send me the drawings about your products our engineer will do the assessment.
Q6.How will the machine be transported?
A.We transport machine by sea and the port is Shenzhen.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production and help customer to solve the problems.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.

---
