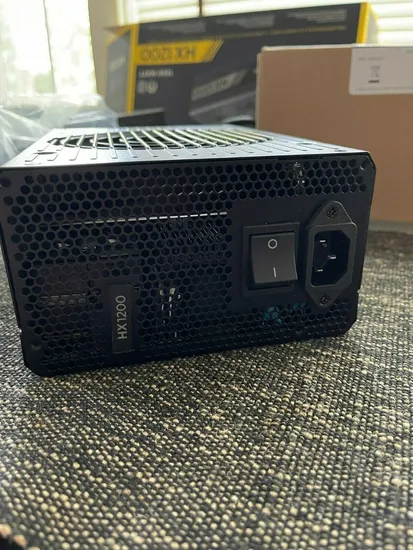

Corsair Hx Series Hx1200 1200W ATX12V V2.4 / EPS12V 2.92 80 Plus Platinum Certified Full Modular Power Supply

US$147.00-165.00 10 Pieces (MOQ)

Basic Info.

Model NO.
CP-9020140-NA
Power
>800W
ATX Standard
ATX12V V2.4 / EPS12V 2.92
Fan Type
13.5cm
Fan Size
≤8"
Feature
Module
Hard Disk Interface
≥8
80PLUS Certification
80 PLUS Platinum
Modular
Modular
Mtbf
100,000 Hours
Main Connector
24 Pin
PCI-Express Connector
8 X 6+2-Pin
SATA Power Connector
8
Input Voltage
100 - 240 V
Input Current
15- 7.5 a
Weight
5.07 Lbs
Warranty
10 Year
Transport Package
Original Boxed
Specification
3.39 x 5.91 x 7.87 inch
Trademark
CORSAIR
Origin
China
HS Code
8504409950
Production Capacity
1000 Pieces/Per Month

Product Description

Product Description Model Brand Series Model
CORSAIR
HX Series HX1200
CP-9020140-NA
Details Type Maximum Power Fans Main Connector +12V Rails PCI-Express Connector SATA Power Connector Haswell Support Modular Energy-Efficient Over Voltage Protection Input Voltage Input Frequency Range Input Current Output Approvals Dimensions Max PSU Length Weight
ATX12V v2.4 / EPS12V 2.92
1200W
1 x 135mm fluid dynamic bearing fan
24Pin
Single +12V Rail or Multi +12V Rail Mode
8 x 6+2-Pin
8
Yes
Full Modular
80 PLUS PLATINUM Certified
Yes
100 - 240 V
47 - 63 Hz
15 - 7.5 A
Single +12V Rail Mode:
+3.3V@30A, +5V@30A, +12V@100A, -12V@0.8A, +5VSB@3.5A
Multiple +12V Rail Mode:
+3.3V@30A, +5V@30A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, +12V6@40A, +12V7@40A, +12V8@40A, -12V@0.8A, +5VSB@3A
FCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
3.39" x 5.91" x 7.87"
200 mm
5.07 lbs.
Features Connectors Features
1 x 24-pin ATX Cable
2 x 1 x EPS12V/ATX12V Cable (4+4)
4 x 2 x PCIe Cable (6+2)
5 x 4 x SATA Cable (4 Connectors)
2 x 4 x PATA Cable (4 connectors)
Active PFC with full range AC input (100-240 VAC)
135mm fluid dynamic bearing fan with Zero RPM mode
Engineered to meet maximum power output at a 50 degree C temperature rating.
Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
