Silicone Sealant Stainless Steel Various Mixing Materials Cosmetic/Pharmaceutical/Bubble Gum Vacuum Planetary Mixer

Product Description

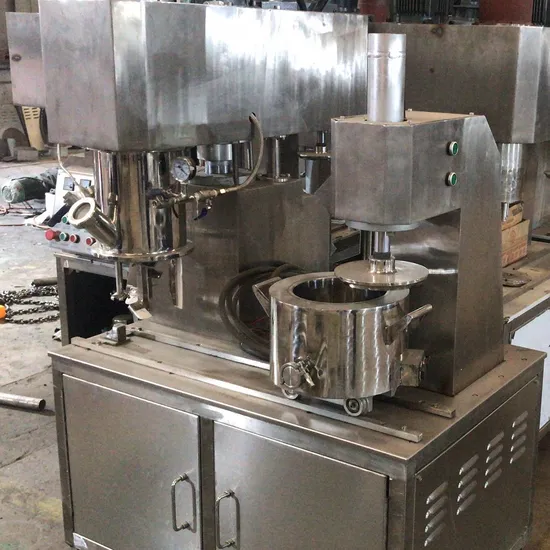

Detailed PhotosPlanetary Mixer is suitable for high viscous material such as putty, silicone gel, Lithium battery slurry, solder paste, ceramic paste, sealants, structural adhesives, soft cream, tooth paste and etc.Lab Planetary mixer with Extruder1~20 Litres
1.with extruder for discharging.
2.Can be processed in vacuum condition.
3.The vessel body can be heated by electricity, steam,water or oil.
4.Variable frequency speed controlVacuum Planetary Mixer25~1000 Litres
1.Multifuctional: reaction, mixing, blending and dispersing 2.Equipped with Mold Temperature Controllers
3.Tank with jacket for heating or cooling
4.Can be equipped with the extruder.
5.The mixing forms are tailored for different processGantry lifting type for Industrial Use500~2000 Litres The agitators also rotates when it revolves to thoroughly mix the materials. The efficiency of planetary mixer is over ten times
higher than that of an ordinary mixerPlanetary Mixer Structure:
Double Twist Mixing HeadDouble-layer high speed dispersing headScrapperEmulsifying head The mixing head combination forms are tailored for different process. Impeller blade, Dispersing disc, Twist impeller and Scraper are optional.Product Description1)Commercial stand type planetary mixers is a kind of highly efficient and versatile mixer with mixing,dispersing, cutting and mixing function;
2)There are three different types of planetary mixers in the blender, One of the groups of agitator rotates around the central axis of the kettle body, The other two groups of mixing device with different speed rotation speed, To make the material in the kettle for complex movement,The material is strongly cut and mixed. In the equipment, Vertical shape blade around the axis of the kettle body rotation, on the cylinder wall and bottom material scraped off and Involved in mixing, mixing effect is more ideal.
3)in the form of the agitator, according to the material requirements can be designed as a multi- layer blades, frame type, butterfly type, leaf type, etc..
4)The sealing performance of the equipment is good, it can be pumped vacuum, the sealing performance of the equipment is good, can be pumped vacuum, can exhaust and eliminate the bubble inside the material .
5)The hydraulic lifting device of cylinder, the cylinder can move freely, the operation is very convenient.
Planetary mixer is a new highly efficient mixing equipment, without dead spots. It is unique and novel in agitation. There are two or three multi-blade stirrer and one or two automatic scraper Agitator runs around the kettle axis, and rotates around its own axis on a different speed at the same time; so that the material in the Kettle crashes intricately, strongly sheared and rubbed. Besides, equipment knife scraped the inside wall of kettle, and bring down the material glued to the wall when rotates around the axis, which greatly enhances the effect .Kettle has special seal structure to pressure and vacuum, so that the exhaust can be well expelled Cylinder jacket can be heated and cooled according to users'needs, Discharging way is pressure fed, covers lift by hydraulic, and cylinder is free to move, which is easy to operate And the impeller and the blade can be rise with the beam out of the cylinder, so it is easy to clean.The equipment is applicable to the process of mix, reaction, disperse, dissolute and quench the multicomponent solid-solid phase, solid-liquid, liquid-liquid materials in the industries of chemical, light industry.food, batteries, pharmaceuticals, building materials, pesticides, It is widely used in the production of ink,paint, adhesives, sealants, filling plastic ointment, paste materials, grease, paint, paste cosmetic, paste food additives and other compounds of high viscous preparation Stirrer is multi-chose in the need of materials requirements, like multi-blade, frame type, butterfly type andt-wheels etc

Model	Revolution Speed(rpm)	Rotation Speed(rpm)	Dispersing Power(kw)	Dispersing Speed(rpm)	Size(mm)
DLH-5L	0-65	0-105	0.75	0-1440	900*550*1500
DLH-50L	0-29	0-95	3.7	0-1440	2000*950*2350
DLH-100L	0-65	0-90	5.5	0-1440	2200*1000*2500
DLH-200L	0-40	0-70	18.5	0-1500	2400*1200*2200
DLH-500L	0-30	0-50	30	0-1000	2700-1350*3000
DLH-1000L	0-30	20-45	45	0-1000	3000*1500*3300
DLH-1500L	0-25	20-40	55	0-1000	3200*1700*3600

Remark:1. Not all models are included in the above form, if you want to know more information, just feel free to contact us.2. The above information is just for your reference, for more accurate information, please refer to quotation or drawing.
Silicone sealant production line
about usThe JCT machinery has been producing industrial mixing, dispersing, kneading, blending and drying for over 15 years since 2006. We take 'make the mixing more easier' as our belief and purpose in order to increasing the durability and applied in varius industries including cosmestics, chemical, plastics, battery slurry, inks, pharmaceuticals, platics, adhesives, sealant, electronic pastes and glues etc.
We design and customise for every unique project by starting with 3D craft exposion, Our reliable team of engineers, sales managers, marketing and product analyzers are always ready for solving your inquiry and question on applications.
JCT machinery now has over more than 10 product lines are ready for helping you find out best solution of your project including, silicone sealant, hot melt glue, battery slurry, rubbers and paint etc.
Packaging & Shipping
FAQ
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
Q : Why does it take at least 20 days to finish the machine ?
A : Once receipt the deposit from you , we will design the drawings and make out the list of the materials and accessories for the production . Once the drawings are finished , our workers will start the production , from welding , polishing , assembling debugging , detection and so on . After finish , they need time to check the machines , if found any possible defect parts , they will return to the production until every part is 100% approved.
Q : Can we pay the balance after we receive the machines and test without problem.
A : It's unnessary to worry about the quality of our machines , we are confident in that . After the machine is finished . we can install and test the machine for you ( if you can not come to our factory ,we can record a video and send to you ) . Only after you check without problems , we will effect shipment .

---
