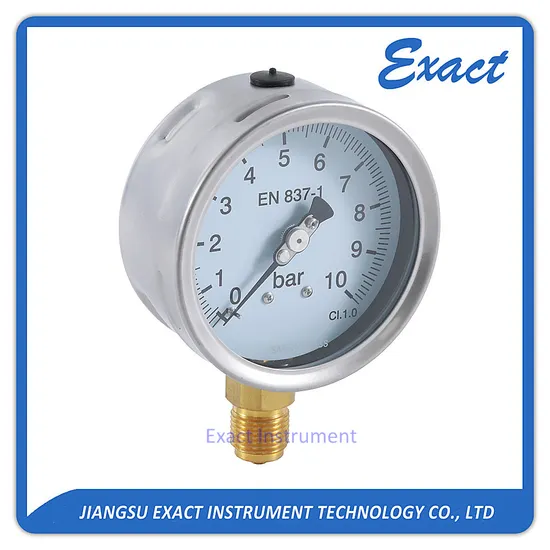

63mm&100mm& 150mm Glycerine or Silicone Filled Heavy Duty High-Performance Stainless Steel Pressure Gauge for Hydraulic &Pneumatic Antivibration Manometer

Product Description

Introducing the Heavy Duty Pressure Gauge: A versatile, liquid-fillable manometer crafted with high-quality stainless steel to ensure robust performance and reliability.

Normal Size:	2.5"(63mm),4"(100mm),6"(150mm)
Pressure Range:	-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:	±1%,±1.6%
Operating temperature:	-40°C to +60°C
Case:	Stainless steel
Bezel:	Stainless steel
Bourdon tube:	Copper alloy
	<100Bar: C-Type
	≥100Bar: Helical Type
Connection:	Brass
Movement:	Brass
Dial:	Aluminum
Pointer:	Aluminum
Window:	Polycarbonate or Glass
Thread:	1/8",1/4", 3/8",1/2";
	PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:	Glycerin or Silicone
Gaskets Filling cap:	Nitrile or Silica gel

FAQ: Your Questions, Answered with Expertise and Precision Q: Can you supply the OEM services?
A: Absolutely! We are fully equipped and ready to provide OEM services to meet your specific needs.
Q: Are you able to develop customized solutions for non-standard applications?
A: Yes, indeed! Our professional R&D team is dedicated to developing bespoke solutions tailored to non-standard applications, ensuring innovation and excellence.
Q: Do you have technical drawings or data sheets of your instruments?
A: Certainly! We can provide technical drawings and data sheets upon request. Please do not hesitate to get in touch with our sales team for assistance.
Q: What about the MOQ?
A: The minimum order amount is set at $1000 USD. However, we are open to discussions for smaller orders.
Q: How about the delivery time?
A: Our delivery time varies from 7 to 45 days, depending on the type and quantity of products ordered. We strive for timely and efficient service.
Q: Do you check the products before shipment?
A: Certainly! We ensure that all our products undergo a rigorous 100% inspection before shipment, guaranteeing top-notch quality.
Q: What is the warranty policy?
A: We offer a comprehensive 1-year warranty to cover any potential issues, ensuring peace of mind and satisfaction with your purchase.

---
