Solid Boat Fender Marine Foam Filled Fenders

Product Description

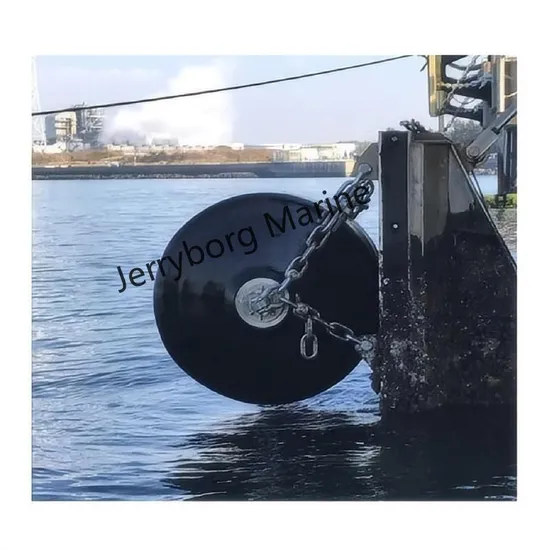

1. EVA Floating Dock Fender IntroductionFoam filled fender,also called EVA solid fender, is a new type fender using light weight high elasticity foam as cushion medium, widely applied to harbour, offshore,STS and STD operation. Jerryborg Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.
1. High energy absorption2. Low hull pressure3. Non-marking (all colours)4. Reinforced PU skin5. Closed cell PE foam body6. Good angular performance7. Standard and custom sizes2. EVA Floating Dock Fender type
3. Hull Pressure
Regular Size

Size(D×L)mm	D(mm)	L(mm)	Compression Value60%		Reference Weight(kg)
			Counter Force(KN)	Energy Absorption(KJ)
Ø 500×1000L	500	1000	71	8	34
Ø 600×1000L	600	1000	86	12	45
Ø 700×1500L	700	1500	161	27	101
Ø 1000×1500L	1000	1500	205	49	206
Ø 1000×2000L	1000	2000	274	64	275
Ø 1200×2000L	1200	2000	337	93	405
Ø 1200×2400L	1200	2400	390	110	475
Ø 1350×2500L	1350	2500	463	145	626
Ø 1500×3000L	1500	3000	624	216	927
Ø 1700×3000L	1700	3000	696	273	1191
Ø 2000×3500L	2000	3500	990	456	1923
Ø 2000×4000L	2000	4000	1110	505	2298
Ø 2200×4500L	2200	4500	1396	679	2992
Ø 2500×4000L	2500	4000	1386	781	3434
Ø 2500×5000L	2500	5000	1750	985	4272
Ø 3000×5000L	3000	5000	2050	1410	6411
Ø 3000×6000L	3000	6000	2460	1695	7293
Ø 3300×6500L	3300	6500	2950	2245	8335
Ø 4500×9000L	4500	9000	19650	7860	21460

4.Company Profile Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Jerryborg Marine Machinery Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services,specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped check out equipment, Qingdao Jerryborg Marine Machinery Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with partners from all over the world.

---
