Crane Lifting Electromagnet for Steel Plate Equipment

Product Description

Lifting Plates Magnets MW84 Series
Steel Plate Magnet Lifter

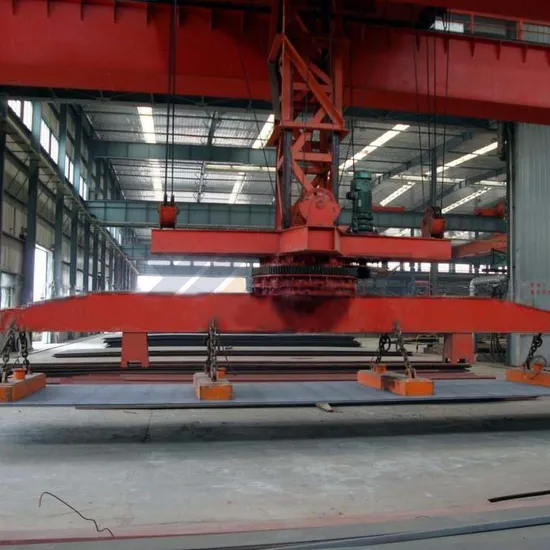

Steel Plate Magnet Lifter is specially design for lifting and transporting steel plates of medium-thickness. The lifting operation is safe, accurate and quick. Considering possible bending and deforming may affect safe transportation when lifting long steel plates, please use the combination of several electromagnets. As to medium-thickness steel plates(6mm-32mm),the space length of electromagnets is 3-4m,the space length of extension parts of both ends is half of the space length. According to different lifting pieces, the series can be divided into type 350 and type 400.Type 350 is suitable for medium-thickness plate factory, ship building factory, and machinery manufacturing factory, it adopts magnet regulating control method, and can lift one piece or certain pieces of steel plates of steel plate. Type 400 is suitable for transporting as many as possible pieces at a time and can design and manufacture high temperature type products used for lifting and transporting steel plate below 700ºC according to customers' requirements.
Main technical data

Model	Mass (kg)	Power (kw)	Lifting width(mm)
			δ6	δ8	δ10	δ12	δ16
MW84-9030T	185	0.41	2300	2700	3000	3200	3600
MW84-10535T	330	0.9	2650	3150	3350	3550	4050
MW84-14035T	430	1.2	3000	3500	3700	3900	4400
MW84-17535T	510	1.5	3350	3850	4050	4250	4750
MW84-21035T	600	1.8	3850	4200	4400	4600	5100
MW84-24535T	720	2.5	4200	4550	4750	4950	5450
MW84-12040L	550	3.0	4550	3500	3700	4000	4500
MW84-16040L	690	3.2	3400	3900	4100	4400	4900
MW84-20040	840	5.0	3800	4300	4500	4800	5300
MW84-24040L	90	6.0	4200	4700	4900	5200	5700
MW84-13042L/G	650	2.4	3060	3560	3760	4060	4560
MW84-17042L/G	850	3.7	3480	3980	4180	4480	4980
MW84-21042L/G	1050	4.0	3900	4400	4600	4900	5400
MW84-25042L/G	1250	4.8	4320	4820	5020	5320	5820
