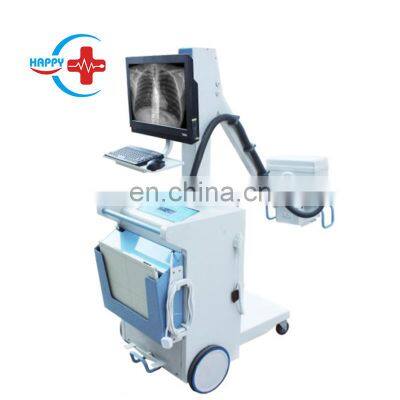

HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detectorTrade assurance Product Description Features for HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detector:Output Power 5KWInverter Frequency 50KHZTube Voltage 40-120KVTube Current 25mA-103mAmAs 1.0-180mAs(46steps)Power Supply 220V±10%,50HZ Battery:Battery can be taken 100 pcs images Anode Type Fixed AnodeFocal Point 1.5mmAnode Heat Capacity 35KJ(47KHU)Tube Heat Capacity 500KJ(666KHU)Dimensions 120cm * 62cm * 130cmNet Weight 150kgSID 500mm-1750mm"Horizontal Axis Rotation 180°Vertical Axis Rotation ‘-30 - +90°Beam Limiting Device Rotation 180°Stand Column Rotation NOSupporting Arm Two-arm SupportingPower Supply Mode Joint the Power LineOperating Mode Wire/Wireless controlOperation Panel Two-Button Type Portable flat panel detector Detector:Amorphous silicon detector scintillator:GOS View:14″×17″ Pixel:2.3K*3K Max spatial resolution:3.4LP/MM Pixel size:150um Output gray-scale:16bits DQE:66%Features 1, the new appearance design, the small beautiful mobile is flexible and convenient, with the high frequency mobile X ray camera all the features.2, the rocker arm adopts the self balance and single support patent technology, the outer shape is more concise and beautiful, and the operation is easy to use.3. Using high frequency inverter technology, the ray quality is good, the skin dose is low, the stability is reliable, the image clarity and contrast are good.4, using kV closed loop control technology, mAs digital closed loop control technology and microcomputer timely control to ensure the accuracy and high repeatability of the dose.5, use kV and mAs to adjust photographic parameters, highlight blue screen LCD display, and have multiple protection functions such as tube voltage overvoltage, tube current overcurrent, output overload, X ray tube heat capacity and so on.6. has 50 filming program, the user can modify and save by itself.7. high quality combined X ray generator greatly reduces radiation and is safer for environmental protection and operators.8, with fault automatic protection device, fault alarm display.9. The system automatically saves the parameters after the power break, so as to ensure that the parameters are not lost.10. Using a rotatable beam limiter, the range and angle of the film can be adjusted freely, and the location of the film is convenient and accurate.11, with high kilovolt photography function, a wide range of application, film effect is good.12, the use of hand control, remote double system photography, wireless exposure is not obstructed by obstacles, more convenient operation. Optional 1. Table for Mobile X ray Equipment (2000×700×500mm, cassette movement: 1680mm)2. Upright Bucky Stand. Standard Configuration:Combined X-ray generator and high frequency inverted power supplyNew main frame of Mobile X-ray systemX-ray equipment control systemRotatable adjustable collimatorRemote controlPortable flat panel detectorWorkstation Pictures: Packaging & Shipping Company Information Our Services FAQ1. How to place order of HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detector ?A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. 2. For HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detector product,What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detector , our MOQ:1pc, 3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detector , we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-D023 Medical High frequency 5KW Mobile Digital X ray machine with flat panel detector , the delivery time is 10 working days.5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way.
>>
