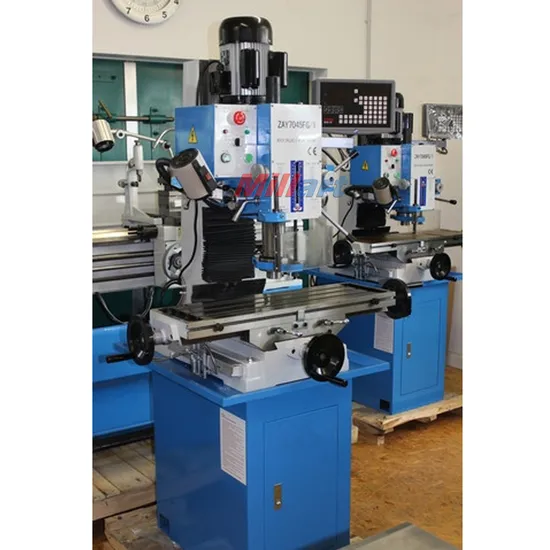

Square Column Gear Drive Milling and Boring Machine Zay7032fg/1 Zay7040fg/1 Zay7045fg/1, Small Metal Bench Drilling and Miling Machine, Small Milling Machine

Product Description

Product Description
Technical parameter :
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed
And cyclic change of feeding speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.

ITEM	ZAY7032FG/1	ZAY7040FG/1	ZAY7045FG/1
Drilling capacity	32mm	40mm	45mm
Max.boring diameter	50mm	60mm	70mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Max distance from spindle nose to table	450mm	450mm	450mm
Min distance from spindle axis to column	260mm	260mm	260mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Auto-feeding step of spindle	6	6	6
Auto-feeding amount of spindle	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°	±90°	±90°
Table size	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net/Gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	770×880×1160mm	770×880×1160mm	770×880×1160mm

Standard accessories:
Allen srench
Wedge
Tie rod
Optional accessories:
Drill chuck
Milling cutter holder
Mill chuck
Power feed attachment
Auto-tapping electrical
Parallel vise
Working lamp
Coolant system
Machine stand and chip tray
Clamping kits
Digital readout
Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
